Module Resolution W×H: 172 dots × 86 dots
Physical Pixel Density /m²: 288,906 dots
Refresh Rate: High refresh ≥3840 Hz
Scan: 1/43
LED: Ruicheng 1515
Brightness (cd/m²): 600
IC Chip: 16380
Single Module Power: 25 W
Max Power /m²: 600 W
Average Power /m²: 360 W
Magnet Post Model: M4-13-17
Dimensions: 320 mm × 160 mm
Interface: HUB75

Model Number：P2.5-32S
Module size：320mm*160mm
Pixel pitch：2.5mm
Pixels Density：160000dots/m2
Minimum comfortable viewing distance：2.5m
Pixel configuration：1R1G1B
Package mode：SMD1515/2020
Pixel resolution：100dots(W)*100dots(H)
Brightness：600-650cd/m2
Module Max Power ：35W
 Max Power：400W/m2
Average Power ：160W/m2
Refresh frequency：≥3840Hz
Viewing Angle：140°(W),120°(H)
Module thickness：14.5mm
Weight：0.65kg
Drive type：PWM Constant drive
Scan: 1/32
Port type：HUB75-E

Module Resolution W×H: 104 dots × 52 dots
Physical Pixel Density /m²: 105,625 dots
Refresh Rate: High refresh ≥3840 Hz
Scan: 1/26
LED: MLS 2121
Brightness (cd/m²): 600
IC Chip: 6373
Single Module Power: 25 W
Max Power /m²: 600 W
Average Power /m²: 360 W
Magnet Post Model: M4-13-17
Dimensions: 320 mm × 160 mm
Interface: HUB75

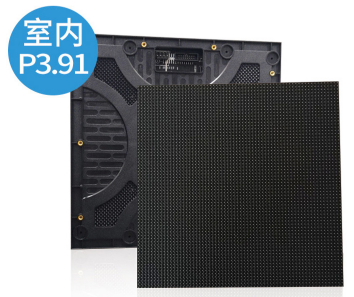

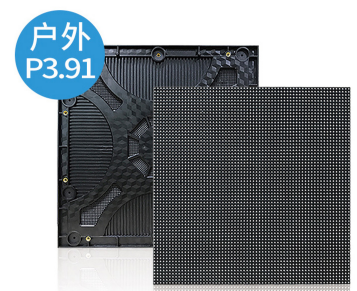

Model Number：P3.91-16S
Module size：250mm*250mm
Pixel pitch：3.91mm
Pixels Density：65536dots/m2
Minimum comfortable viewing distance：4m
Pixel configuration：1R1G1B
LED: Huaguang 1921
Pixel resolution：64dots(W)*64dots(H)
Brightness (cd/m²): 4000-4500
Module Max Power：30W
Max Power：800W/m2
Average Power：480W/m2
Refresh frequency：≥3840Hz
Viewing Angle：140°(W),120°(H)
Module thickness：16mm
Weight：0.75kg
Drive type：PWM Constant drive
Port type：NV-7508

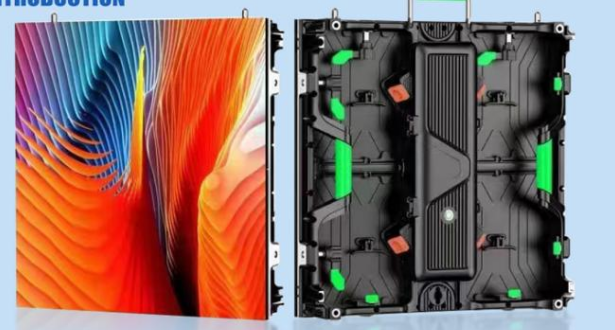

Module Resolution W×H: 128 dots × 128 dots
Physical Pixel Density /m²: 65536 dots
Refresh Rate: High refresh ≥3840 Hz
Frame Rate: 60 Hz
LED: Huaguang 1921
Brightness (cd/m²): 4000-4500
IC Chip: 6373
Single Cabinet Power: 200 W
Max Power /m²: 800 W
Average Power /m²: 480 W
Waterproof Rating: IP68
Gray Scale: 16-bit
Max Current: 7.5 A
Service Life: ≥100,000 hours
Module Spec: L250 × H250 × T14
Cabinet Spec: 500 mm × 500 mm × 80 mm
Weight: 7 kg

Module Resolution W×H: 128 dots × 256 dots
Physical Pixel Density /m²: 65536 dots
Refresh Rate: High refresh ≥3840 Hz
Frame Rate: 60 Hz
LED: Huaguang 1921
Brightness (cd/m²): 4000-4500
IC Chip: 6373
Single Cabinet Power: 400 W
Max Power /m²: 800 W
Average Power /m²: 480 W
Waterproof Rating: IP68
Gray Scale: 16-bit
Max Current: 7.5 A
Service Life: ≥100,000 hours
Module Spec: L250 × H250
Cabinet Spec: 500 mm × 1000 mm × 80 mm
Weight: 15 kg

Model Number：P3.91-16S
Module size：250mm*250mm
Pixel pitch：3.91mm
Pixels Density：65536dots/m2
Minimum comfortable viewing distance：4m
Pixel configuration：1R1G1B
Package mode：SMD2121
Pixel resolution：64dots(W)*64dots(H)
Brightness：600-650cd/m2
Module Max Power：30W
Max Power：480W/m2
Average Power：180W/m2
Refresh frequency：≥3840Hz
Viewing Angle：140°(W),120°(H)
Module thickness：14.5mm
Weight：0.65kg
Drive type：PWM Constant drive
Scan: 1/16
Port type：NV-7508

Module Resolution W×H: 80 dots × 40 dots
Physical Pixel Density /m²: 62,500 dots
Refresh Rate: High refresh ≥3840 Hz
Scan: 1/10
LED: Huaguang 1921
Brightness (cd/m²): 4500-5000
IC Chip: 16380
Single Module Power: 35 W
Max Power /m²: 800 W
Average Power /m²: 480 W
Magnet Post Model: M4-13-17
Dimensions: 320 mm × 160 mm
Interface: HUB75

Module Resolution W×H: 80 dots × 40 dots
Physical Pixel Density /m²: 62,500 dots
Refresh Rate: High refresh ≥3840 Hz
Scan: 1/20
LED: Ruicheng 2121
Brightness (cd/m²): 600
IC Chip: 16380
Single Module Power: 25 W
Max Power /m²: 600 W
Average Power /m²: 360 W
Magnet Post Model: M4-13-17
Dimensions: 320 mm × 160 mm
Interface: HUB75

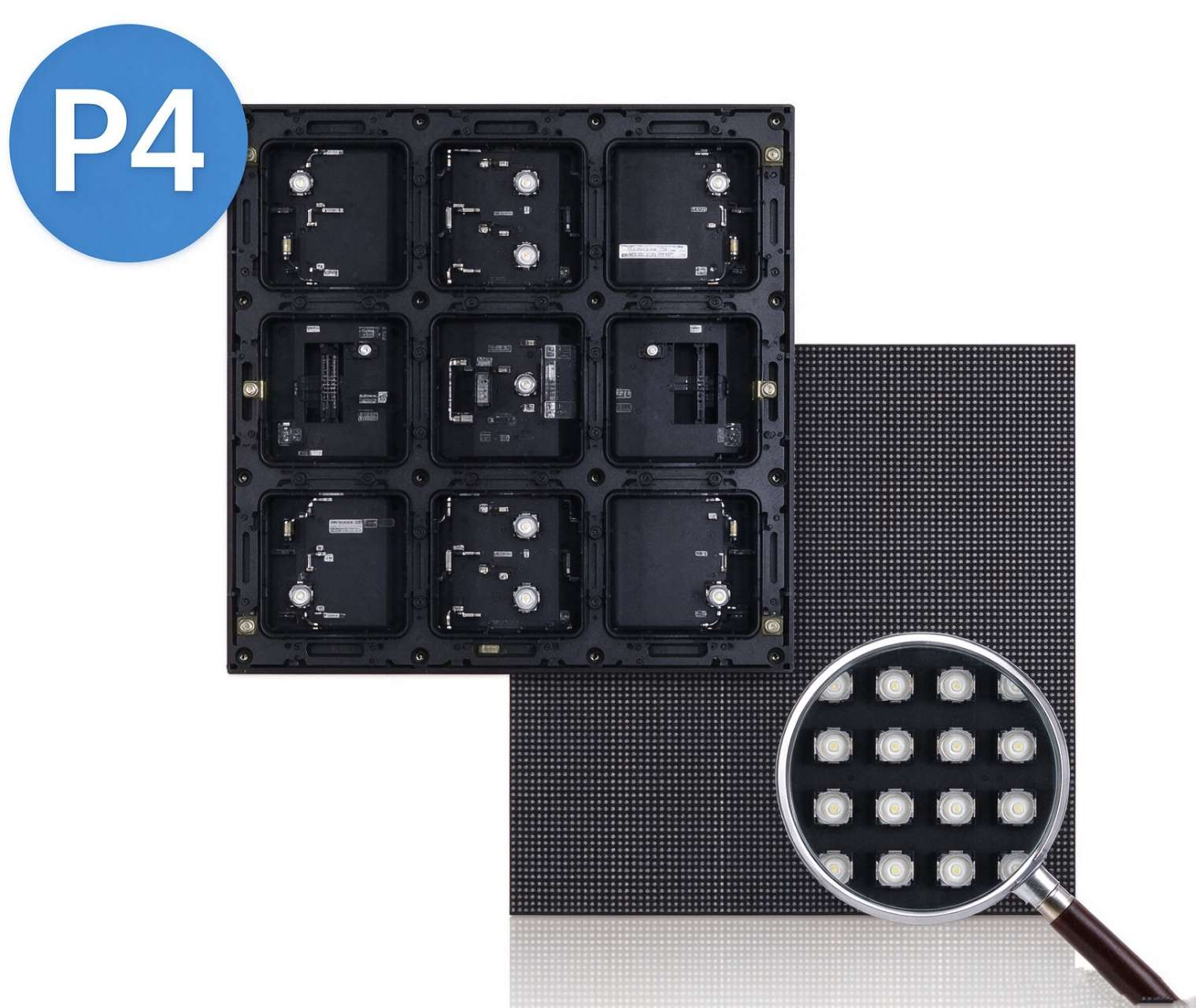

Module Resolution W×H: 64 dots × 64 dots
Physical Pixel Density /m²: 62,500 dots
Refresh Rate: Standard refresh 1920
Scan: 1/32
LED: MLS 2121
Brightness (cd/m²): 600
IC Chip: 6124
Single Module Power: 25 W
Max Power /m²: 600 W
Average Power /m²: 360 W
Magnet Post Model: M4-13-17
Dimensions:256mm × 256 mm
Interface: HUB75

Module Resolution W×H: 64 dots × 32 dots
Physical Pixel Density /m²: 40,000 dots
Refresh Rate: Standard refresh 1920
Scan: 1/16
LED: MLS 2121
Brightness (cd/m²): 600
IC Chip: 6124
Single Module Power: 25 W
Max Power /m²: 600 W
Average Power /m²: 360 W
Magnet Post Model: M4-13-17
Dimensions: 320 mm × 160 mm
Interface: HUB75

Module Resolution W×H: 64 dots × 32 dots
Physical Pixel Density /m²: 40,000 dots
Refresh Rate: High refresh ≥3840 Hz
Scan: 1/8
LED: Huaguang 1921
Brightness (cd/m²): 4500-5000
IC Chip: 16380
Single Module Power: 35 W
Max Power /m²: 800 W
Average Power /m²: 480 W
Magnet Post Model: M4-13-17
Dimensions: 320 mm × 160 mm
Interface: HUB12

Module Resolution W×H: 32 dots × 16 dots
Physical Pixel Density /m²: 10,000 dots
Refresh Rate: ≥60 Hz
Scan: 1/4
LED: MLS 2835
Brightness (cd/m²): 3700-4000
IC Chip: 5125
Single Module Power: 20 W
Max Power /m²: 400 W
Average Power /m²: 250 W
Magnet Post Model: M4-13-17
Dimensions: 320 mm × 160 mm
Interface: HUB12

Module Resolution W×H: 32 dots × 16 dots
Physical Pixel Density /m²: 10,000 dots
Refresh Rate: ≥60 Hz
Scan: 1/4
LED: MLS 2835
Brightness (cd/m²): 900-1000
IC Chip: 5125
Single Module Power: 20 W
Max Power /m²: 400 W
Average Power /m²: 250 W
Magnet Post Model: M4-13-17
Dimensions: 320 mm × 160 mm
Interface: HUB12

Module Resolution W×H: 32 dots × 16 dots
Physical Pixel Density /m²: 10,000 dots
Refresh Rate: ≥60 Hz
Scan: 1/4
LED: MLS 2835
Brightness (cd/m²): 1200-1400
IC Chip: 5125
Single Module Power: 20 W
Max Power /m²: 400 W
Average Power /m²: 250 W
Magnet Post Model: M4-13-17
Dimensions: 320 mm × 160 mm
Interface: HUB12

Module Resolution W*H: 32dots * 16dots
Module Size: 320mm * 160mm
Pixel Density: 10000 dots/m²
Refresh Rate: ≥60Hz
Scan: 1/4
LED Chip: MLS 2835
Brightness: 400-500 cd/m²
Driver IC: 5125
Power per Module: 20W
Max Power Consumption: 400W/m²
Average Power Consumption: 250W/m²
Magnet Screw: M4-13-17
Interface: HUB12

Module Resolution W*H: 32dots * 16dots
Module Size: 320mm * 160mm
Pixel Density: 10000 dots/m²
Refresh Rate: ≥60Hz
Scan: 1/4
LED Chip: MLS 2835
Brightness: 3200-3500cd/m²
Driver IC: 5125
Power per Module: 20W
Max Power Consumption: 400W/m²
Average Power Consumption: 250W/m²
Magnet Screw: M4-13-17
Interface: HUB12

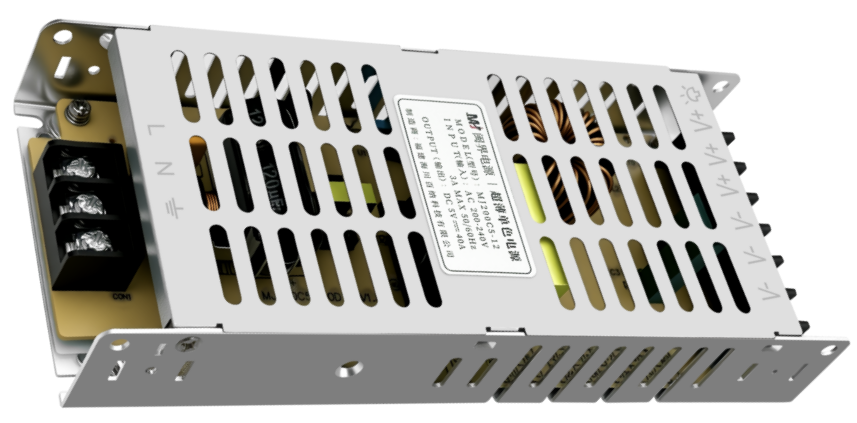

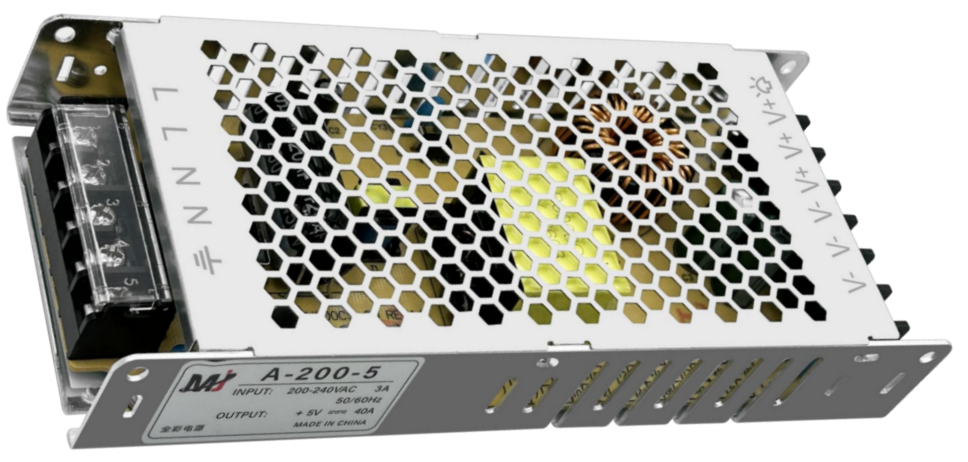

Rated Input Voltage: 200～240Vac
Input Voltage Range: 176-264Vac
Frequency Range: 47～63Hz
Max Input Current: 3A MAX
Power Factor (PF): ≥0.6
Full Load Efficiency: ≥88%
Output Voltage: 5.0V
Output Voltage Tolerance: ±3% (4.85V～5.15V)
Output Current: 0～40A
Max Output Power: 200W

Input voltage range: 180-264Vac
Efficiency up to 88%
natural cooling
Comprehensive protection function:Output short-circuit / Output over- current
Working temperature range: -30 ℃~70 ℃

Input voltage range:180-264Vac
Normal voltage range:200-240Vac
Frequency range:47-63Hz
Max input current: 3A Max

Output voltage：5V
Output Voltage Tolerance:4.85V～5.15V
Output current:0~40A
Output power MAX:200W

Loading capacity up to 650,000 pixels
Maximum width: 2048 pixels, maximum height: 2048 pixels
 Maximum width of an ultra-long screen: 8192 pixels, maximum height of an ultra-long screen: 2048 pixels
(maximum loading capacity per Ethernet port: 650,000 pixels)
 1x Gigabit Ethernet output port
 1x Stereo audio output connector
The audio sample rate is fixed at 48 kHz. If NovaStar’s multifunction card is used for audio output, audio
with a sample rate of 48 kHz is required.
 1x HDMI 1.3 input connector
In synchronous mode, this connector is used as the video source which can be scaled to fit the entire screen automatically

Loading capacity up to 1,300,000 pixels
− Maximum width: 4096 pixels, maximum height: 4096 pixels
− Non-standard resolutions are supported in both asynchronous and synchronous modes
and the pixel clock of the custom resolutions cannot exceed 153 MHz.
 2x Gigabit Ethernet ports
All these two ports serve as primary by default. Users can also set one as primary and the
other as backup.
 1x Stereo audio connector
The audio sample rate is fixed at 48 kHz. If NovaStar's multifunction card is used for audio
output, audio with a sample rate of 48 kHz is required.
 1x HDMI 1.3 connector
Maximum output: 1920×1200@60Hz and support for HDMI loop

Output connectors
− 6x Gigabit Ethernet ports
A single device unit drives up to 3.9 million
pixels, with a maximum width of 10,240
pixels and a maximum height of 8192
pixels.
− 2x Fiber outputs
OPT 1 copies the output on 6 Ethernet
ports.
OPT 2 copies or backs up the output on 6
Ethernet ports.
− 1x HDMI 1.3
For monitoring or video output

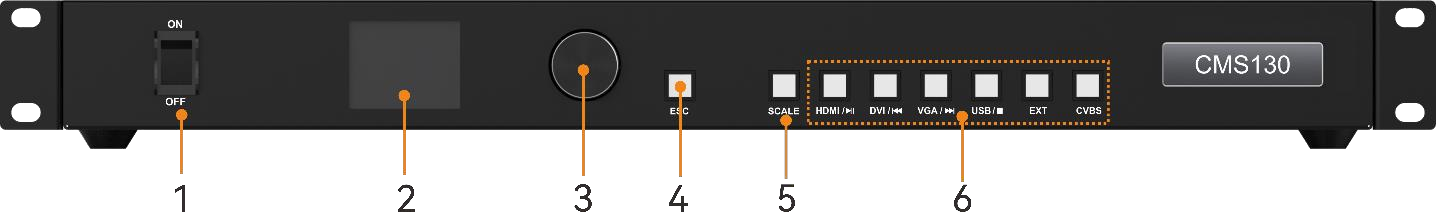

Up to five input connectors: 1x DVI, 1x HDMI
1.3, 1x VGA, 1x USB, 1x CVBS
 Adjustable layer position and size, and input
cropping supported
 Press input source buttons to easily switch
between the input sources.
 External independent audio
 EDID management supported
 Personalized image scaling: Full screen, pixel to
pixel and custom
 Quick configuration to easily configure the LED
screen
 2x Ethernet output connectors with a loading
capacity of up to 1.3 million pixels
 Easy preset saving and loading
Up to 6 user-defined presets
 LED screen color adjustment, such as
brightness and Gamma
 Controlled via central control devices

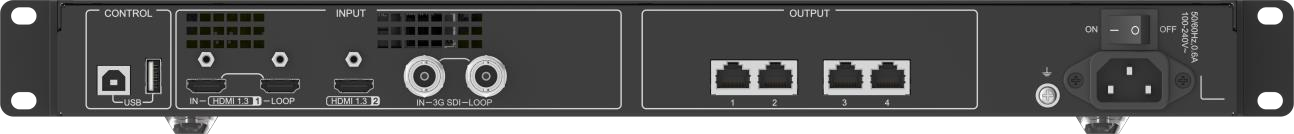

Input connectors
− 1x HDMI 1.3 (IN & LOOP)
− 1x HDMI 1.3
− 1x 3G-SDI (IN & LOOP)
Output connectors
− 4x Gigabit Ethernet ports
A single device unit drives up to 2.6 million
pixels, with a maximum width of 3840 pixels
and a maximum height of 3840 pixels.

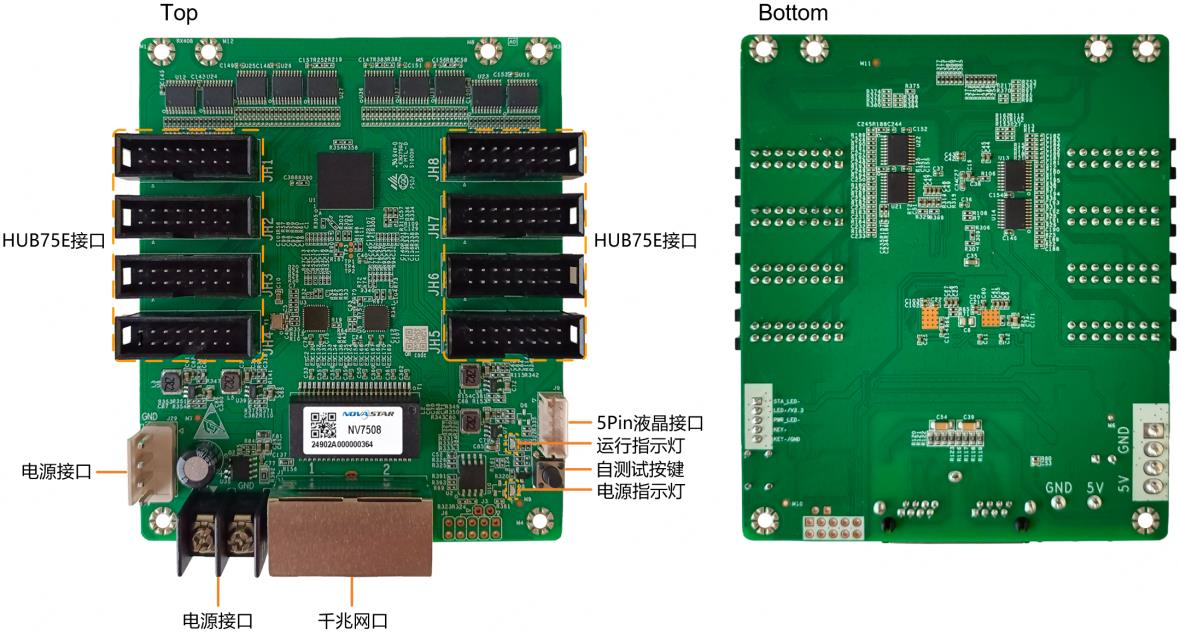

The NV7508 is a general receiving card developed by NovaStar Tech Co., Ltd. (hereinafter
referred to as NovaStar). Supporting various functions such as Color Management, 18bit+, Pixel
Level Brightness and Chroma Calibration, Quick Adjustment of Dark or Bright Lines, Multi-batch
Adjustment, Low Latency, 3D, Individual Gamma Adjustment for RGB, and 90° Image Rotation,
the NV7508 can significantly improve the display effect and user experience.
The NV7508 uses 8 standard HUB75E connectors for high stability communication and supports
up to 16 groups of parallel RGB data.
 For PWM driver ICs, the maximum load capacity per board when used with M3 controllers is:
− 512×512@60Hz (For 8bit video sources)
− 512×256@60Hz (For 10bit video sources)
 For common driver ICs, the maximum load capacity per board when used with M3 controllers is:
− 512×384@60Hz (For 8bit video sources)
− 512×192@60Hz (For 10bit video sources)

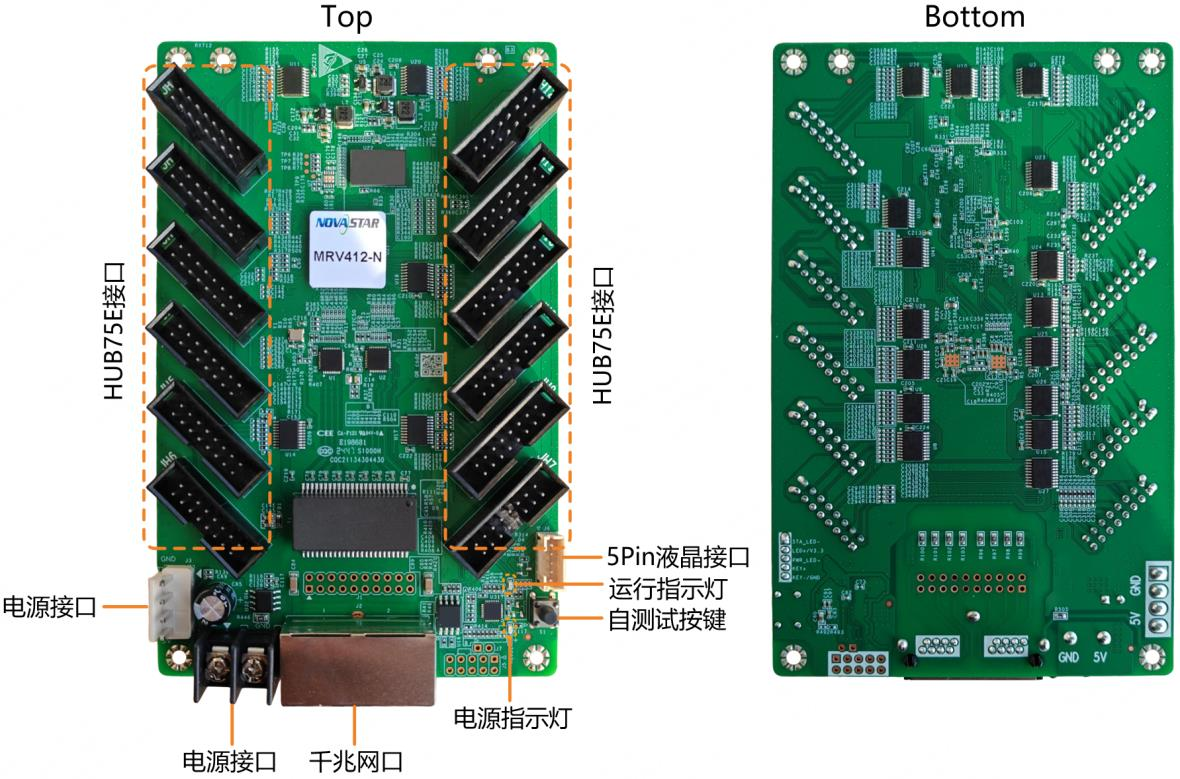

The MRV412-N is a general receiving card developed by NovaStar Tech Co., Ltd. (hereinafter
referred to as NovaStar). Supporting various functions such as Color Management, 18bit+, Pixel
Level Brightness and Chroma Calibration, Quick Adjustment of Dark or Bright Lines, Multi-batch
Adjustment, Low Latency, 3D, Individual Gamma Adjustment for RGB, and 90° Image Rotation,
the MRV412-N can significantly improve the display effect and user experience.
The MRV412-N uses 12 standard HUB75E connectors for communication. It supports up to 24
groups of parallel RGB data and is suitable for various on-site setups.
When working with 8bit video sources, the maximum load capacity per card is:
 512×512@60Hz (PWM driver IC)
 512×384@60Hz (common driver IC)

Contact us for technical specifications.

Contact us for technical specifications.

Contact us for technical specifications.

Contact us for technical specifications.

Contact us for technical specifications.

Contact us for technical specifications.

Contact us for technical specifications.

400W waterproof intelligent moving head light
Power supply: AC100~240V, 50/60Hz wide voltage mode
Rated power: 450W
Bulb: 250W specification
Protection level: IP65
Optical system: efficient optical system, strong light output, high-quality optical lens
Horizontal scanning: 540°
Vertical scanning: 270°
Adjust horizontal/vertical moving speed, horizontal/vertical automatic adjustment to complete calibration, magnetic encoding positioning function, high-precision waterproof motor
Dimming/strobe: 0%~100% smooth dimming, multiple speed strobe effects
1 color wheel: 14 color chips + white light, any half-color effect, rainbow effect with two-way rotation.
1 pattern plate: 17 patterns (customers can flexibly customize patterns) + white circle; Hall positioning function, easy to correct the initial position and maintain
Dual prism plate: each prism can realize the function of self-rotation and revolution (customers can flexibly customize the prism effect), two prism plates can be overlapped and rotated in both directions
Focus and magnification: electronic linear focusing, ultra-fine and smooth adjustment of focal length
1 six-color atomization: 1 six-color rainbow effect + 1 atomization
Heat dissipation: hidden air outlet design, safer waterproof performance
Screen: full-color LCD display, four-button tempered touch glass
Universal controller: DMX 512 controller,
Control mode: DMX512/master-slave/auto,
DMX signal input/output: 3-core XLR waterproof signal line interface

"Technical Parameters
Input voltage:AC100V-240V50/60H2
Rated power: 500W
Halo light strip: 30 imported LED light beads, segmented control of horse racing and flowing water patterns
Control channels: 16 DMX channels
Operating mode: voice control, self-propelled, master-slave, DMX512
Color wheel: 14 colors + white light Colorful colors: six-color effect Fixed pattern: 13 patterns + white light
Prism: two independent prism disks, 8 prism + honeycomb prism (8+16+24) double prism
Can be stacked
Focus: Dual motor HD focus Atomization: Atomization and six-color all-in-one frame
Strobe: single strobe
Dimming: 0-100% linear dimming
Pan/Tilt: 540° horizontal scan, 270° vertical scan
Display interface: Color screen, 1.8-inch buttons, 180° reverse display, Chinese and English switchable
Lamp housing: high temperature resistant plastic and alloy materials
Protection level: IP20 Net weight: 12.1KG
Product size:30*23*51(cm)
Gross weight:14.1KG
Packaging size 53.5*37.5*40.5(cm)"

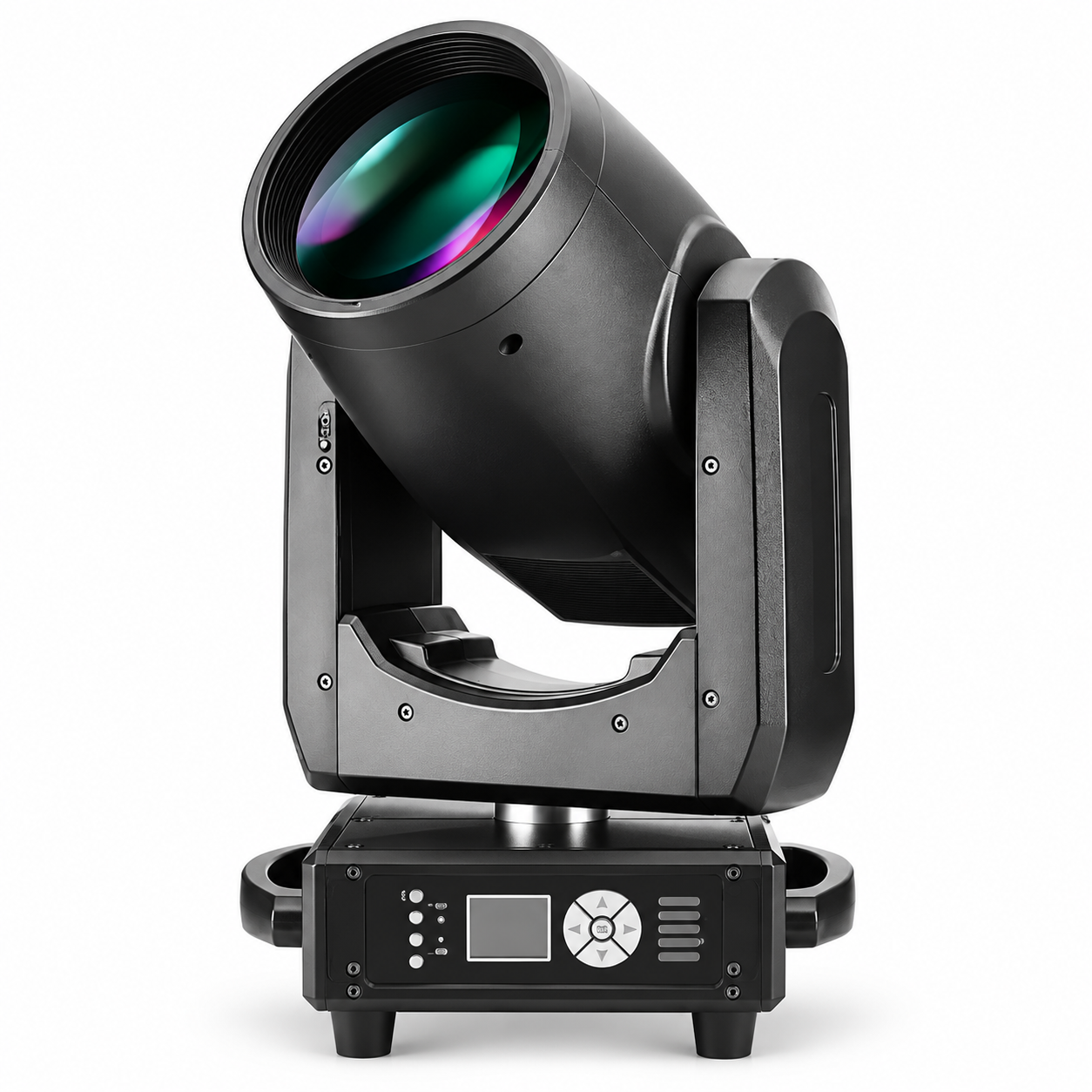

Power supply: AC100V-240V 50-60Hz     Total power: 500W
Light source: Taiwan excellent light bulb
Bulb power: 380W
Color temperature: 7800K
Average lifespan: 1500H (the bulb and reflector are packaged as a whole,
with higher light efficiency and longer service life)
Number of motors: 14 silent motors in total, XY three-phase motors
Dimming: 0-100% linear adjustment.
Fixed color: 14 color chips + white light (half color effect available)
Static pattern: 7 fixed images + 5 white lights of different sizes + white light
Prism: 8+8+8 honeycomb prism, 16 prism (double prism can be superimposed 40,
can rotate independently in both directions)
Color film: 1 six-color film (can do colorful effect)
Atomization: 1 independent atomization effect, the light spot is soft and natural
Control channel: 16CH channel
Size:32*22*58 (L*W*H)
Control signal: international standard DMX512
Protection grade: IP20
Net weight: 16.5kg

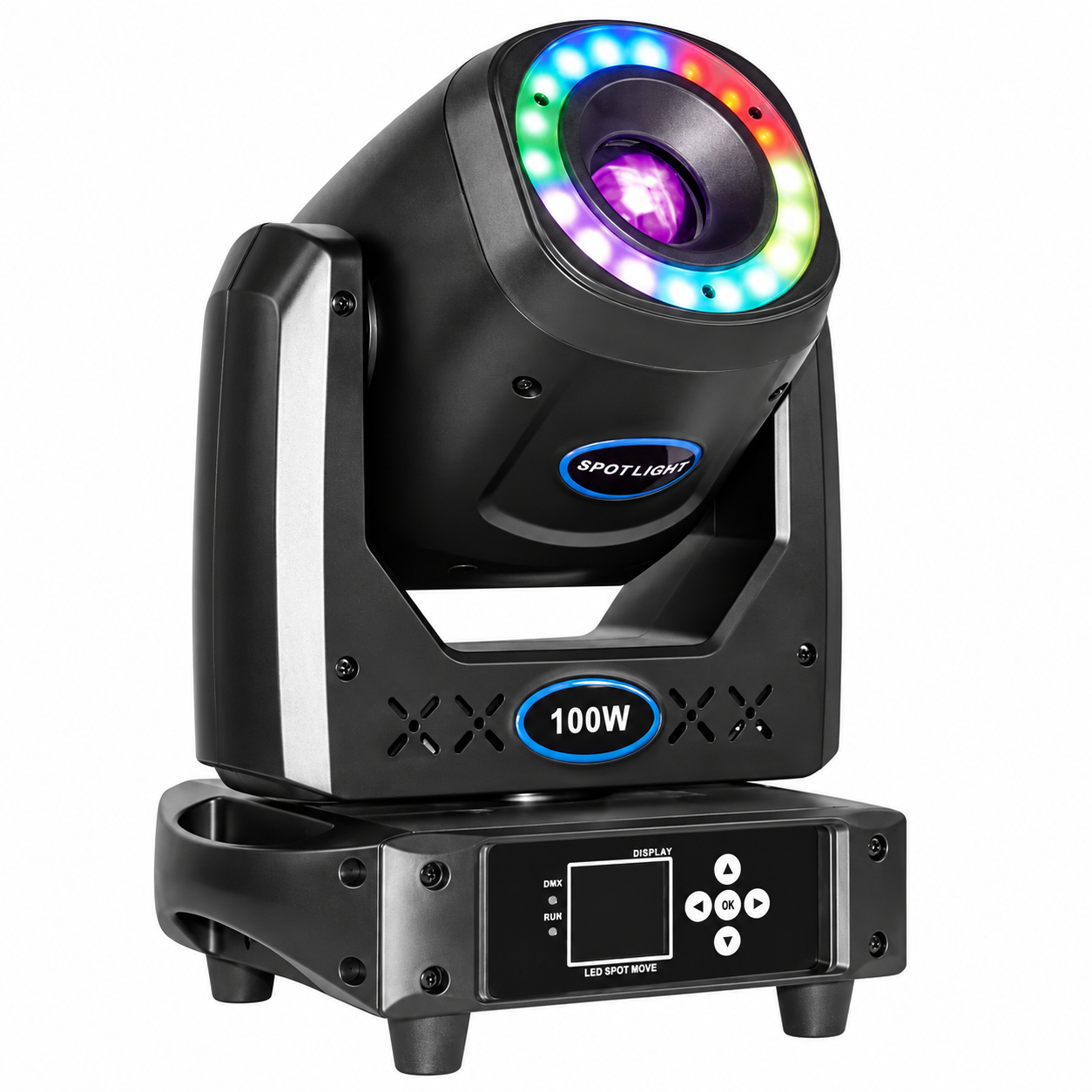

Input voltage: 100-220V AC, 50/60Hz
Total power: 150W
Light source: single 100W white LED
Light source life: 50,000 hours
LED light ring: 54 LED high-brightness three-in-one lamp beads, built-in a variety of horse racing effect programs
Channel mode: 17CH
Color: 14 colors + white light
Frost and rainbow Effect
Fixed gobo wheel: 10 fixed gobos +3 glass gobos + white
2 Prisms: 8 prism and 8+16 prism, independent rotation forward and backward
Pan/Tilt movement: 540° /270°, adopting a function which resets 16bit accurately
Working mode: DMX512 control, Auto mode, master/slave mode
Control signal: international standard DMX512.With the RDM function, you can upgrade software online and dial address codes
Protection grade: IP20
N.W:12kg
G.W.:15kg
Product size: 300*210*510mm
Packing size:53.5*37.5*40.5cm

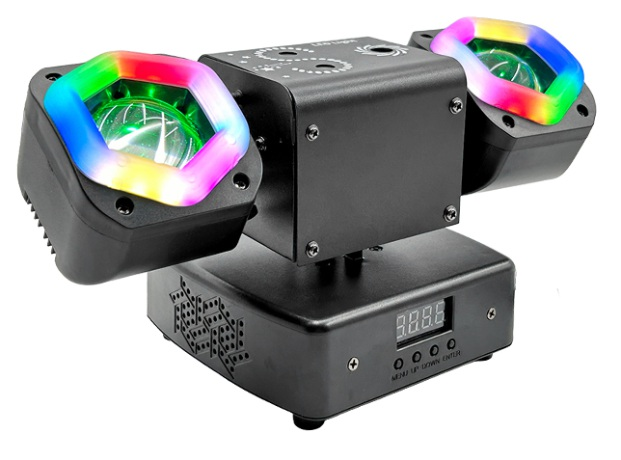

Voltage: AC 100240V,5060 Hz
Power: 150W
Light source: 2*60W four-in-one LEDs, and 2 strips of 19 RGB surface-mount LEDs
channel :24/16CH
Control Mode: Voice Control, Master-Slave, Auto-Travel, DMX512
Horizontal: 540°, Vertical: 180°
Work Environment: Indoor
Packaging method: Air box or cardboard box
Product Dimensions: 25*16.5*31 cm
Inner box dimensions: 36*26*27 cm
External box dimensions: 55*38*58 cm (1 pack contains 4 units)
Net weight of product: 2.96 kg
Product gross weight: 3.55 kg
Net weight of the entire box: 15.4 kg

The operating voltage: AC95V-245V50/60Hz
Rated power: 60 W
lamp bead parameters: 30W white light
Control mode: international general DMX512, 9/11 channel
Working mode: DMX512, main/slave, self-walking, voice control
Dimmming: 0~100% super smooth dimming
strobe: 20 times/second
Cooling system: forced cooling system of silent fan
Working environment: indoor
Packaging method: air box or carton
Inner box size: 29*20*23CM
Outer box size: 61*42*50CM(8 sets/piece)
Net weight of the product: 2.35 KG
Gross weight: 2.8 KG
The gross weight of the whole box: 23.5KG

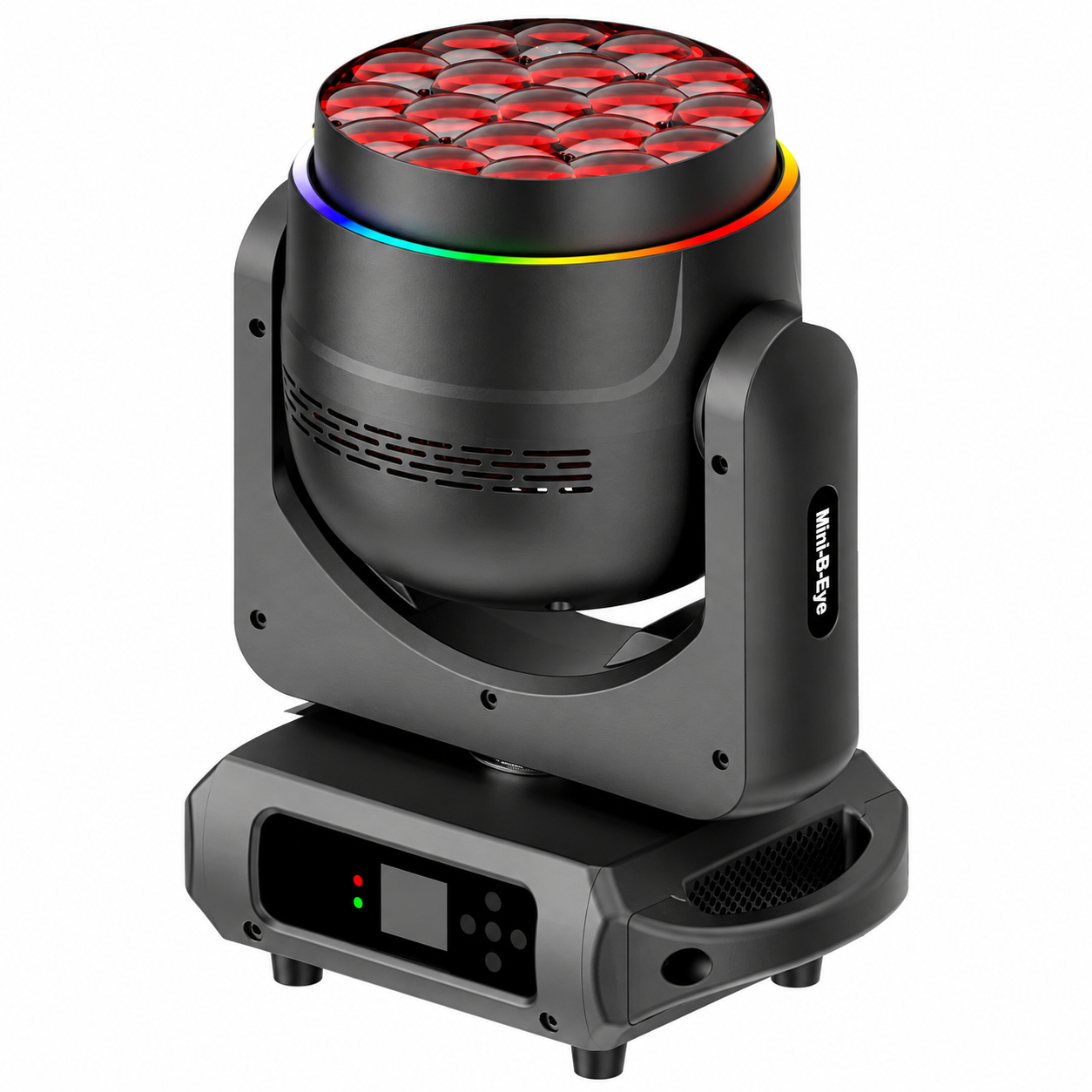

Voltage: AC90-240V 50/60Hz
Power: 350W
Light source: 19 OSRAM 4in1 15W high brightness Light beads
Lifespan: 100,000 hours
Beam angle: 4-60°
Color: RGBW stepless color mixing, color temperature can be accurately adjusted from 8000K to 2500K
Dimming: 0-100% linear dimming system
Strobe: 1-25 times/second high-speed strobe effect, speed adjustable, with random strobe and pulse strobe
Horizontal scanning: 540 degrees +16 bit fine adjustment
Vertical scan: 250 degrees +16 bit fine adjustment
Control signal: DMX512, master-slave machine, voice control or self-propelled program
Channel: 21CH (standard) 23CH/35CH (image)/78CH (extendable)/96CH (RGBW extendable)/92CH (full)
Display: blue LCD screen
Waterproof rating: IP20
Product size: 520*420*560mm
Net weight: 15Kg
Gross weight: 18.5Kg

Power supply: AC 90-240V, 50/60Hz
Maximum power consumption: 500W
Lamp beads: 10 40W four-in-one
Light source life: average 30,000 hours
Lighting angle: 2°
Y-axis travel: 0-230°
Channel: 7-11-44-47CH channel selection
Control protocol: DMX, RDM remote operation, voice control, self-propelled, master-slave mode
Heat dissipation: air-cooled heat dissipation system.
Shell: steel body + plastic
Protection level: IP20
Gross weight: 13.6kg Net weight: 12.8kg
Product size: 110*10*22CM Packing size: 115*18*25CM (one in one) 117*38.5*31.5CM (two in one)

Input voltage: AC90-240 V, 50-60 Hz
Light source:200W
LED life expectancy: 50,000-80,000 hours
Lens Angle : 60° Dynamic Effects
0-100% smooth linear dimming system
Shutter: 1-18 times/sec high speed strobe, speed adjustable
Control and Program: DMX512, master-slave, sound control, auto programs
Data connector in/out: 3-pin XLR
Ambient temperature: 25°C ~+45°C
Protection grade: IP20
Product: 225*225*325mm
Box:255*255*360mm
Net weight: 2.4 kg
Gross weight: 3.0 kg

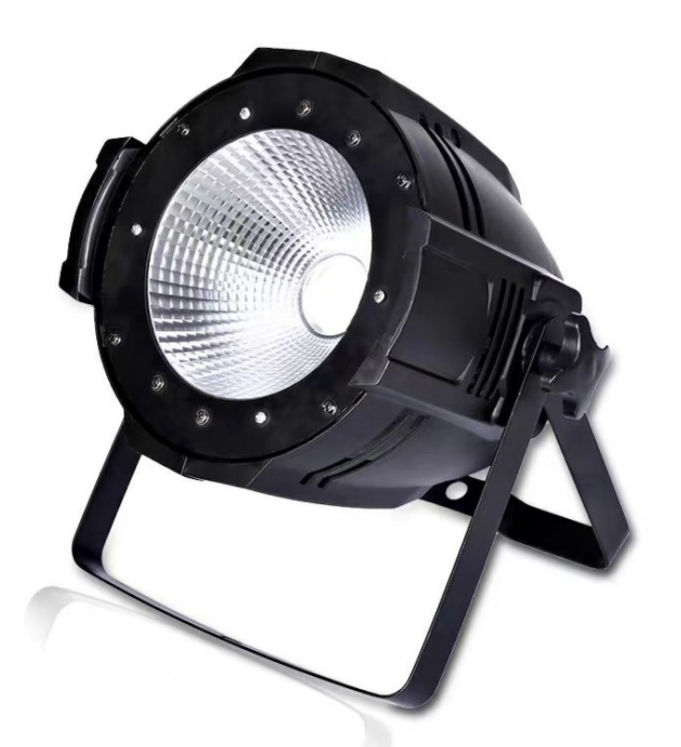

Input voltage: AC90V-240V 50HZ/60HZ
Power:200w
LED: 2 *100w lamp beads
Optional color emission:
3200K warm white
6500K cool white
3200K warm white + 6500K cool white 2-in-1
Dimmer: linear dimming 0-100%
Beam angle: 60 degrees
Control mode: DMX512/voice control/automatic/manual/master-slave
DMX Channel :2/4/8 CH
Workingtemperature: 25-45degree
Net weight:2.8KG
Packaging size: 40*21*21CM

Power Supply: AC90~ 240V, 50Hz/60Hz
Rated Power: 200W
Light Source: 480pcs 5050 RGB color LED+240pcs 5730 white LED
Strobe Frequency: 1-30Hz
Control Channels: 4CH/11CH/140CH (3 modes)，DMX-512 signal channel
Dimming: 0~100% linear dimming
Features:60-segment marquee effect, 40-segment color strobing, 20-segment white-light strobing
Control Mode: DMX-512, Auto-run, Master-Slave, Sound-active, with RDM function
Connection: DMX512 input/output, Power input/output
Packing: Flight case or carton
Inner Box Size: 103*10*15cm
Outer Carton Size: 105*22*34cm (4pcs/ctn)
Net Weight: 2.9KG
Gross Weight: 3.41KG

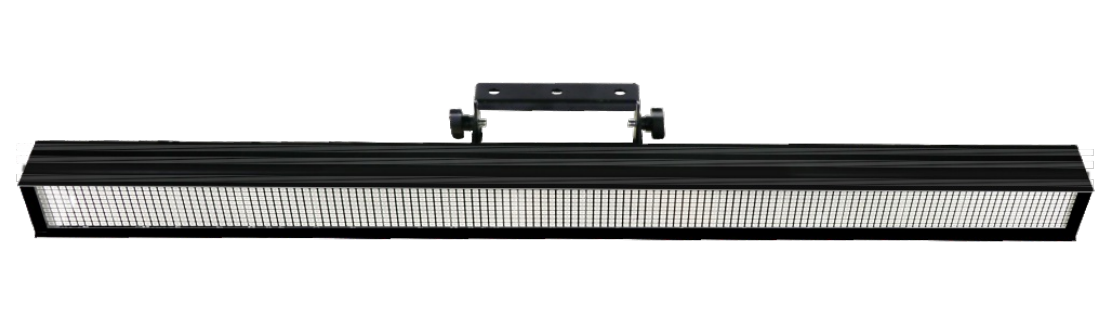

Power supply: AC90 ~240V, 50Hz/60Hz
Rated power: 300W
Light source: 1296pcs 5050SMD RGB color light
Strobe frequency: 1-30Hz
Control channel: CH03, CH08, CH48, CH53
Dimming: 32bit' 0~100% linear dimming
Features: 16 sections of horse racing, dyeing, flashing
Control mode: DMX-512, self-propelled, master-slave, voice control, with RDM function
Connection method: DMX512 input and output/ power input and output
Waterproof grade: IP20
Packing: air box or carton
Inner box size: 104*13*18cm
Carton size: 106*27*41cm (4pcs/pack)
Product net weight: 4kg
1 piece gross weight: 17.6kg

Voltage: AC100~240V 50/60HZ
Power: 250W
LED Source: 666pcs *0.25W RGB LED
Control Mode: DMX512, Auto-run, Master-Slave, Sound-active, with RDM function
Channels: CH3, CH9, CH22
Operating Temperature: -30°C ~ 50°C
Strobe Frequency: 1~30HZ
Connection: DMX512 Input/Output, Power Input/Output
IP Rating: IP20Product Size: 98*8.6*12cm (including handle height)
Inner Box Size: 99.5*13*16.5cm
Outer Carton Size: 101*28*36.5cm (4pcs/ctn)
Net Weight: 4.47KG
Gross Weight: 5.11KG

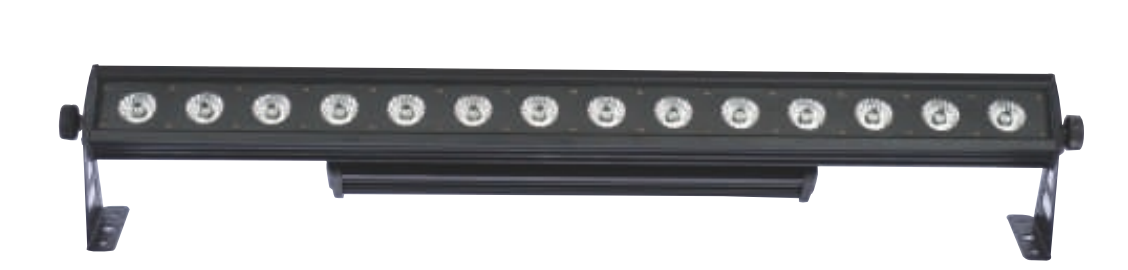

Input voltage: AC100V/240V 50/60HZ
Rated power: 260w
Light source: 14*10/15/18W RGBW 4-in-1 point controlled wall washer light
Lighting angle: 8 degrees
Dimming: 0-100% linear dimming
Channel: 2/4/5/6/10/13/56/61CH
Control mode: DMX512, master-slave, self-propelled, voice control
Protection level: IP20
Net weight: 5.5kg
Size: 100*15.5*16.5cm

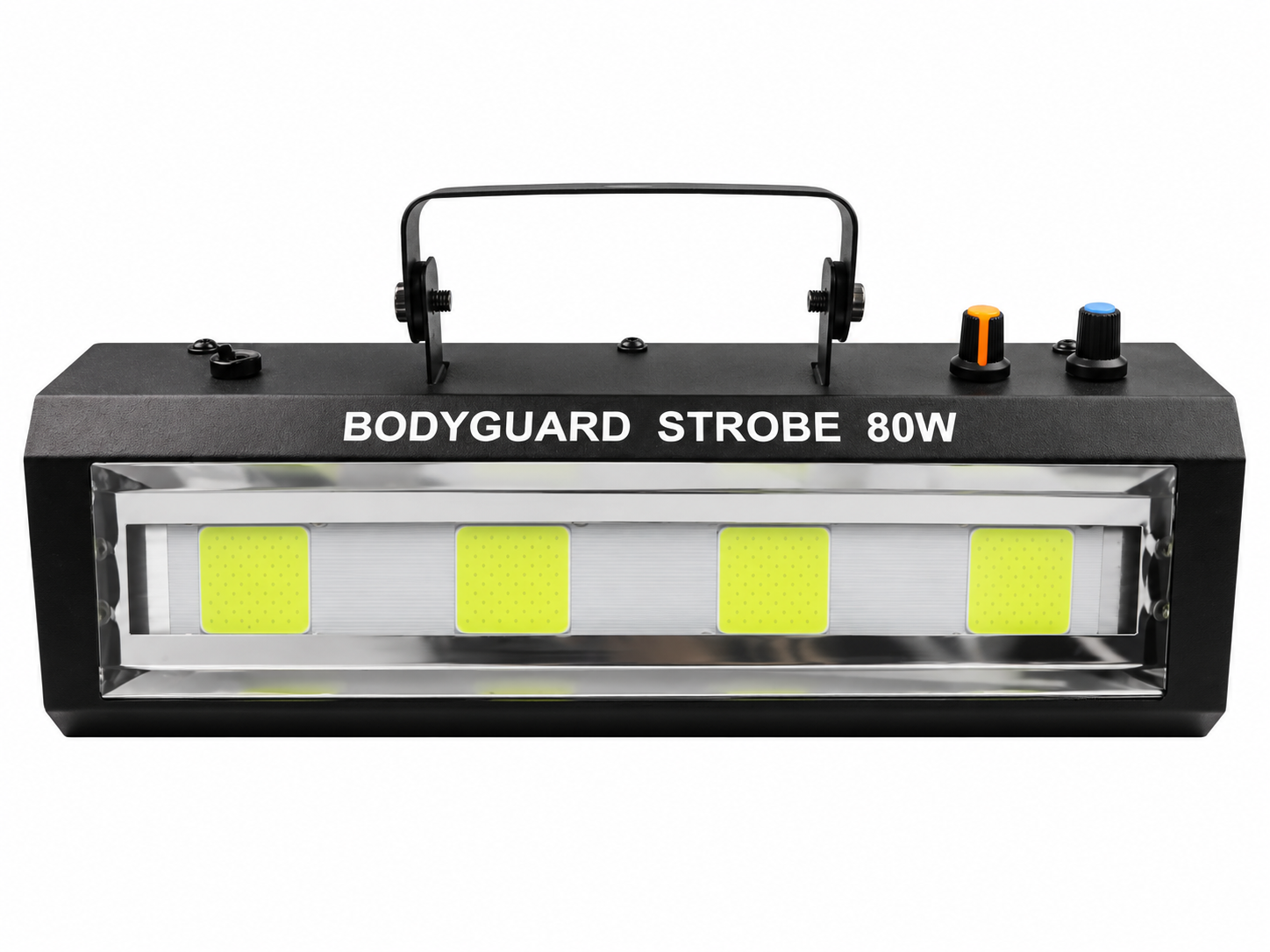

Power Supply: AC90~240V, 50Hz/60Hz
Power Rated: 80W
Light Source: 4*20W Integrated patch
Luminous Color: White/RGB
Chassis material: all aluminum
Applicable place: Bar, Di Bar, Ballroom, KTV Room, Family Party
Power connection: power cord
Control Mode: Sound、Auto Mode、Strobe (Step less speed regulation)
Working environment: Indoor
Packing Mode: air box/Carton
Inner box size: 31.5*8*14CM
Carton size: 65*44*31CM
N.W: 1.25Kg

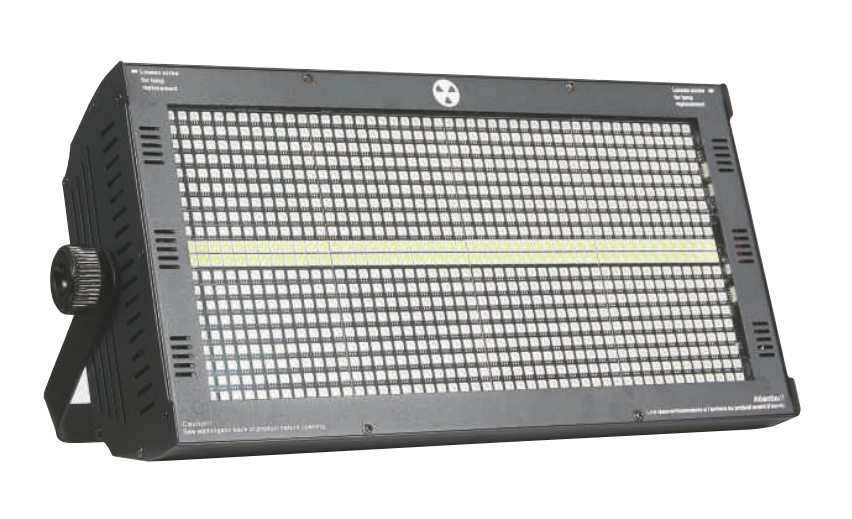

Voltage: AC100~240V 50/60HZ
Power: 200W
Lamp beads: 864pcs 5050 tri-color LED lamp beads + 96 white LEDs
Control mode: DMX512, self-propelled, master-slave, voice control, with RDM function.
Channel: CH04, CH12, CH32
Dimming: 32bit 0~100% linear dimming
Features: 8+8 sections of horse racing + dyeing + flashing
Working temperature: -30°C~50°C
Strobe frequency: 1~30HZ
Connection method: DMX512 input and output / power input and output.
IP rating: IP20
Inner box size: 51*28*18.5cm
Outer box size: 59*53*41cm (4 pieces)
Product net weight: 5.25kg

Input Voltage: AC100-230V
Max. Input Power: 240W
Light Source Parameters:
864 pcs of 0.2W 5050 RGB 3-in-1 LEDs (6*8 pixels)
112 pcs of 0.5W 5054 white LEDs
LED Service Life: 50,000 hours
Control Modes: DMX512, Sound-Activated, Auto Run, Master-Slave Control, RDM
Control Connector: 3-pin XLR (XLR-3P)
Channel Modes: 12CH / 4CH / 6CH / 152CH / 154CH
Strobe Speed: 0-20 flashes per second (adjustable)
Ingress Protection Rating: IP20

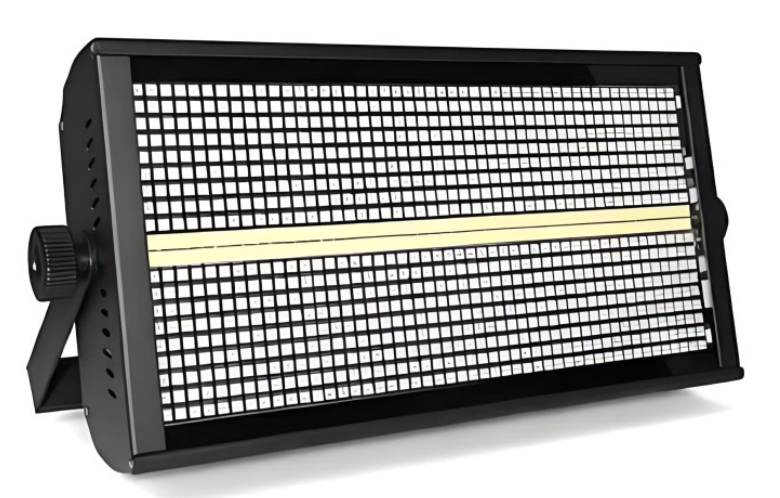

Voltage: AC100~240V 50/60HZ
Light Source: 24pcs 3535 3W White LED
5050 0.3W 480 fill lamp beads
Total power: 250W
Channel mode: 11CH/120CH
Control mode: standard DMX512 signal protocol, built-in multiple effect programs, voice control, self-propelled, excellent voice control effect
Built-in RDM512 protocol and more!
Dimming technology: FLICKER FREE 10KHz dimming
refresh PWM strobe, shooting, video flicker-free.

Power supply: AC90~245V, 50Hz/60Hz
Product power: 120W
Lamp bead parameters: 4 PCS*15W RGBW + 48 PCS*0.2W 5050 RGB, 1*30MW green/red laser (laser type)
Control mode: International DMX512, 14 channels
Dimming mode: 0~100% ultra-smooth dimming
Working mode: DMX512, master/slave, auto, sound control
Strobe: 20 times/second
Packing method: air box/carton
Inner box size: 26*26*26CM
Carton size: 55*54*54CM (8 PCS/carton)
N.W: 2.4KG
G.W: 2.45KG
Carton weight: 20.8KG

Power supply: AC100-240V, 50Hz/60Hz
Rated power: 180W
Case material: metal
Light source: 16*3W LED color RGBW
Lighting parameters: 10pcs 10W LED, 2 red lasers of 100MW, 2 green lasers of 30MW and 1 blue laser of 100MW, 4pcs 3W strobes
Signal connection: signal input line/output line
Function: self-walking effect, strobe performance effect
Control mode: DMX512, 15 channels internationally
Working mode: DMX512, master/slave, self-walking, sound control
Flicker: 20 times per second
Cooling system: Silent fan forced cooling system
Working environment: Indoor
Packaging: air box or carton
Product size: 16*14*24.5 CM
Inner box size: 27*27*33 CM
Outer box size: 56*56*36 CM (4pcs/carton)
Net weight of product: 2.3KG
Gross weight of product: 2.93KG
Gross weight of the whole box: 13.03KG

Power supply: AC90~240V, 50Hz/60Hz
Rated power: 150W
Laser power: 50MW*1 green laser + 100MW*1 red laser
Light source: 12 LED*12W 4 in 1 lamp bead
Chassis material: aluminum
Signal connection: signal input line/output line
Control channel: international DMX512, 13/16 signal channel
Control mode: DMX512, 16/18 signal control, sound control, auto and master-slave mode
Cooling system: forced fan cooling system
Working environment: indoor
Packaging method: Air box or cardboard box
Inner box size: 39*26*37CM
Carton size: 59*41*77CM (4 PCS/CARTON)
N.W: 4.7KG
G.W: 5.2KG
Carton weight: 21.8KG

Rated voltage: AC100-240V, 50/60Hz
Rated power: 180W
Lighting System: 4*10W CREE 4-in-1 LEDs, 4*3W RGB strip lights, 6*15W honeycomb LEDs, 1*5W RGB strip, 2*5W high-brightness golden flashes, 1*100mA red laser, 1*100mA green laser
Cooling system: convection heat transfer, air cooling, intelligent temperature control and protection
Lens: Unique high concentration of light
Flash rate: 0-20 times per second
Operating mode: DMX512 signal, master-slave, self-walking, voice-controlled
Control mode: International standard DMX512, 21/34 channels
Panel display: 0.39-inch 4-digit display + 4 buttons
Scan speed: 540° horizontal, 360° vertical rotation
Scan fine-tune: 8/16-bit
Scan location: Electronic automatic location

Power supply: AC95V-245V/50Hz
Lamp beads: 16 PCS 3535 LED, 2PCS 100MW red laser, 2PCS 100MW green laser, 4PCS 5W yellow flash
CONTROL MODE: DMX512, 23 channels for international use
Mode of operation: DMX512, master/slave, self-walking, voice control
Dimming mode: 0~100% ultra-smooth dimming
Strobe: 20 times per second
Heat dissipation: Aluminum products cooling, forced cooling fan

Working voltage: AC95V-245V/50Hz
Product power: 160W
Source:4pcs 3W Red LED, 4pcs 3W Green LED
4pcs 3W Blue LED, 4pcs 3W White LED
4pcs 10W 4in1 LED, 6pcs 4W 4in1 LED
2pcs 50mW Red Lasers and 2pcs 50mW Green Lasers
2pcs 10W Strobe LED,
24pcs Iridescent light Strips
Control mode: DMX512, 27CH
Mode: DMX512, Master/slave, Auto run, Sound Active
Dimming: 0-100% ultra smooth dimming
Strobe: 20 times/second
Product size: 330*330*178mm
Net weight of product: 2.26kg

Power supply: AC95~245V, 50Hz/60Hz
Rated power: 150W
Light bead parameters: 10pcs CREE 10W RGBW light beads, 100MW red laser, 50MW green laser, 2pcs 10W white light strobes, 2ps 10W golden yellow light strobes, 23pcs of color light strip
Control mode: international DMX512, 26 channels
Dimming mode: 0~100% ultra-smooth dimming
Working mode: DMX512, master/slave, self-run, sound control
Flicker: 20 times per second
Packaging: air case/paper box
Box size: 35*35*24CM
Outer box size: 73*37*52CM (4PCS/CARTON)
Net weight of product: 2.6KG
Product gross weight: 3.4KG
Whole box gross weight: 13.13KG

Rated voltage: AC100-240V, 50/60Hz
Rated power: 180W
Lighting System: 4*10W CREE 4-in-1 LEDs, 4*3W RGB strip lights, 6*15W honeycomb LEDs, 1*5W RGB strip, 2*5W high-brightness golden flashes, 1*100mA red laser, 1*100mA green laser
Cooling system: convection heat transfer, air cooling, intelligent temperature control and protection
Lens: Unique high concentration of light
Flash rate: 0-20 times per second
Operating mode: DMX512 signal, master-slave, self-walking, voice-controlled
Control mode: International standard DMX512, 21/34 channels
Panel display: 0.39-inch 4-digit display + 4 buttons
Scan speed: 540° horizontal, 360° vertical rotation
Scan fine-tune: 8/16-bit
Scan location: Electronic automatic location
Inner box size: 35*35*24CM
Outer box dimensions: 73*37*52CM (4 units per piece)
Net product weight: 2.02KG
Product gross weight: 2.8KG
Gross weight of whole box: 12.47KG

Rated voltage: AC 100-240V, 50/60Hz
Rated power: 60W
LED: 2*12W CREE four-in-one LED, 1*5W high-brightness golden light strobe, 1*100mA red laser, 1*50mA green laser, and 2 strips of 0.2W LED (total: 18 LED)
Heat dissipation system: Convection heat transfer, air cooling, intelligent temperature control protection
Lens: Unique and exceptional light-concentrating capability
Flicker: 0-20 times/second
Working Mode: DMX512 Signal/Master-Slave/Auto-Operational/Audio-Controlled
Control mode: Internationally standardized DMX512, 19/26 channels
Panel display: 0.39-inch 4-digit digital display + 4 buttons
Scanning speed: horizontal 540°, vertical 180° rotation
Scanning fine-tuning: 8/16-bit
Scanning positioning: electronic automatic positioning

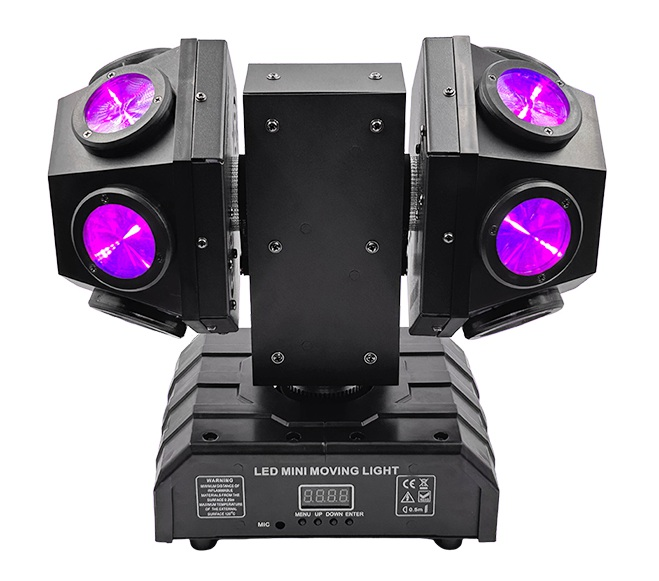

Power supply: AC90~240V, 50Hz/60Hz
Rated power: 180W
Light source: 12 LED*12W 4 in 1 lamp bead
Chassis material: aluminum
Power connection: power cord
Signal connection: signal input line/output line
Control channel: international DMX512, 13/15 signal channel
Control mode: DMX512, 16/18 signal control, sound control, auto and master-slave mode
Cooling system: forced fan cooling system
Working environment: indoor
Packaging method: Air box or cardboard box
Inner box size: 31*21*39CM
Carton size: 64*45*41CM (4 PCS/carton)
N.W: 3.88KG
Product N.W: 4.58KG
G.W. of the whole Carton: 19.58KG

"Voltage: AC100V-240V 50/60H2
Power: 250W
Lamp beads: 50W, COB lamp beads
Control method: DMX512, self-propelled, voice control
DMX channel: A mode CH7, B mode CH8
Features: dyeing + flash
Appearance: high temperature plastic, metal, black
Working environment temperature: -30℃—50℃
Protection level: IP20
Connection method: hand in hand
Product size: 27*23*31
Net weight: 2.50KG"

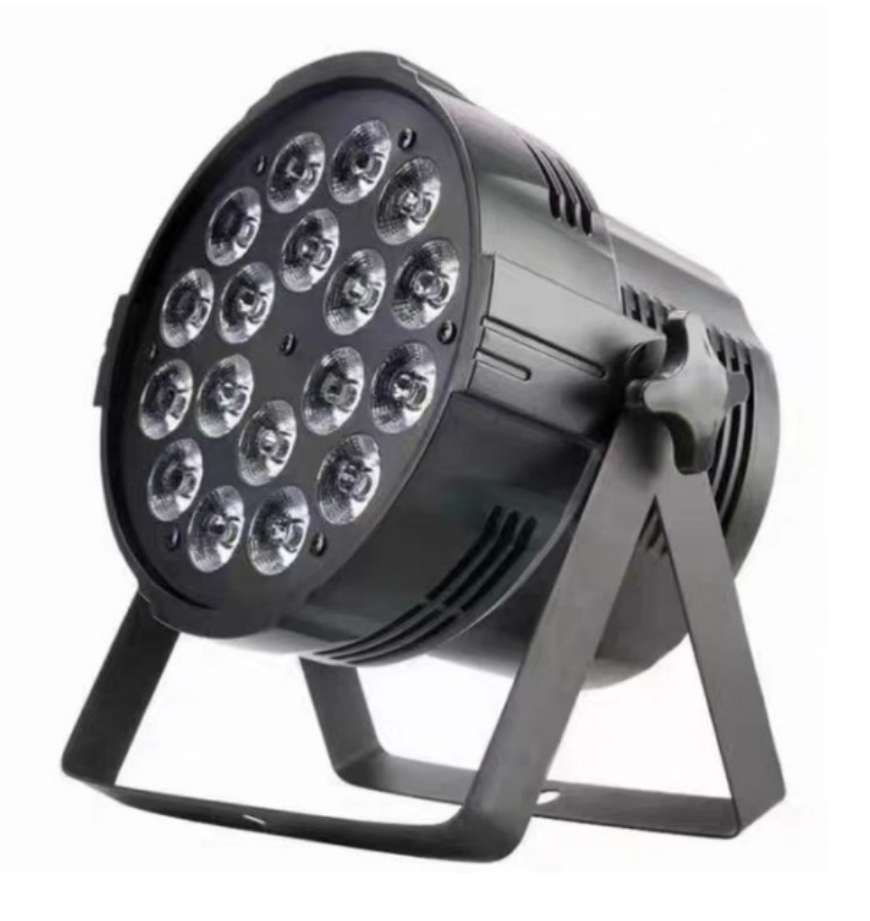

Input voltage: AC90-240 V, 50-60 Hz
Light source:  18*4W 4IN1 LED
LED life expectancy: 50,000-80,000 hours
Lens angle: 25° (45° optional)
Dynamic Effects
Colour rainbow effect
0-100% smooth linear dimming system
Shutter: 1-18 times/sec high speed strobe, speed adjustable
With random strobe and pulse effect
Control and Program:DMX512, master-slave, sound control, auto programs
Power connector in/out: IEC standard
Data connector in/out: 3-pin XLR
Protection grade: IP20
Product: 225*225*325mm
Box:255*255*360mm
Net weight: 2.4 kg
Gross weight: 3.0 kg

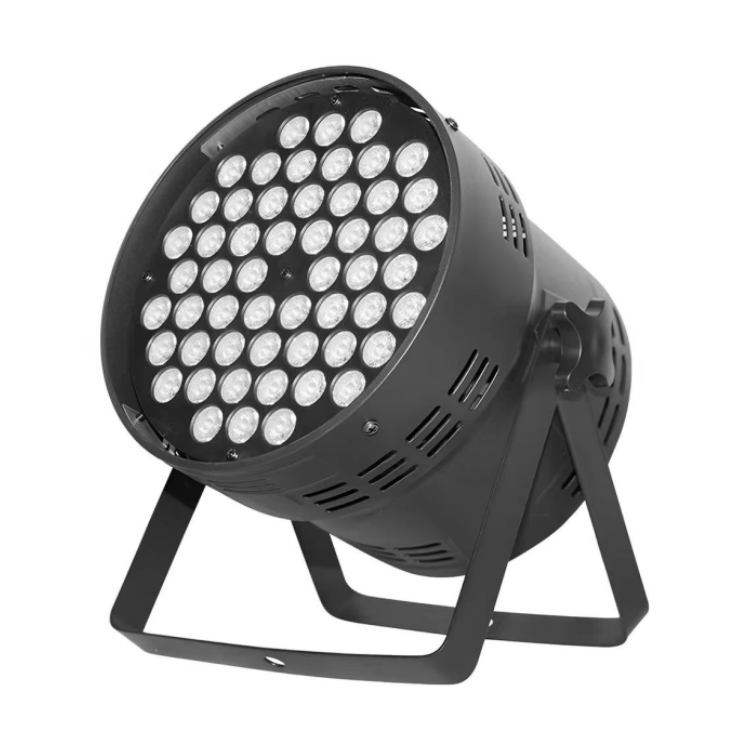

Input voltage: AC90-240 V, 50-60 Hz
Light source: 54pcs 1W RGB 3-in-1 LED
LED life expectancy:50,000-80,000 hours
Lens angle:25° (15° 45° 60° optional)
Dynamic Effects
Colour rainbow effect
0-100% smooth linear dimming system
Shutter: 1-18 times/sec high speed strobe, speed adjustable
With random strobe and pulse effect
Control and Program: DMX512, master-slave, sound control, auto programs
Data connector in/out: 3-pin XLR
Ambient temperature: 25°C ~+45°C
Protection grade: IP20
Product: 225*225*325mm
Box: 255*255*360mm
Net weight: 2.4 kg
Gross weight: 3.0 kg

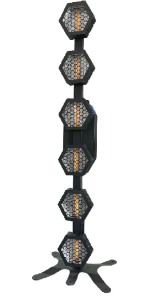

"Voltage: AC100~220V 50/60HZ
Power: (72*0.3W (20W) + 100W) *6 pcs
Lamp beads: 72 5050 three-color LED lamp beads + long 3200K lamp beads
Control mode: DMX512, self-propelled, master-slave, voice control, with RDM function.
Channel: CH010, CH04, CH73
Dimming: 32bit 0~100% linear dimming
Features: dyeing + flash + fill light
Working temperature: -30 degrees ~ 50 degrees
Strobe frequency: 1~30HZ
Appearance: metal, black
Lamp size (with base): 0.44mX0.34mX1.54m
Carton size: 157x26x23cm
Net weight: 9.09kg
Gross weight: 10.7kg"

"Voltage: AC100~220V 50/60HZ
Power: 63*0.3W auxiliary light + 7*50W main light-(actual power: 200W)
Lamp beads: 63 5050 three-color LED lamp beads + 7 warm white COB lamp beads
Control mode: DMX512, self-propelled, master-slave, voice control, with RDM function.
Channel: CH08, CH32
Dimming: 32bit 0~100% linear dimming
Features: dyeing + flash + fill light
Working temperature: -30 degrees ~ 50 degrees
Strobe frequency: 1~30HZ
Appearance: metal, black
Connection method: DMX512 input and output/power input and output.
IP rating: IP20
Product size: 56x50x10
Packing size: 56x56x17kg
Net weight: 5.89kg
Gross weight: 7.44kg"

Power supply: AC100~240V 50/60HZ
Rated power: 112W
Chassis material: metal
Light source: 5050RGB(0.25w)*24 PCS + 50W golden light*2 PCS + 5050(0.25w)*31 PCS lamp bead
Signal connection: signal input line/output line
Function: 1-30Hz full bright strobe, self-propelled effect, gradient jumping, constant brightness
Control channel: CH7、CH14、CH21
Control mode: DMX512、Auto、master-slave、sound、with RDM function
Linear dimming features: 2 RGB+2W +62RGB segment single point control
Cooling system: fan forced cooling system
Working temperature: -30°C~50°C
Working environment: Indoor
Strobe frequency: 1-30HZ
Packaging method: Air box or cardboard box

Voltage: AC100~240V 50/60HZ
Power: 350W
LED Source: 441pcs 5050 RGB *0.25W LED + 49pcs 3535 *5W single-color LED
Control Mode: DMX512, Auto-run, Master-Slave, Sound-active, with RDM function
Channels: CH4, CH13, CH14, CH490
Linear Dimming Feature: Individual pixel control for 441 RGB + 49 White segments
Operating Temperature: -30°C ~ 50°C
Strobe Frequency: 1~30HZ
Connection: DMX512 Input/Output, Power Input/Output
IP Rating: IP20
Inner Box Size: 57*56.5*13.5cm
Outer Carton Size: 58.5*58*30.5cm (2pcs/ctn)
Net Weight: 5.9KG
Unit Gross Weight: 7.3KG
Carton Gross Weight: 16.2KG

Power supply: AC90V~240V, 50Hz/60Hz
Rated power: 80W
Chassis material: plastic+metal
Lamp bead: 2*15W LED + 6*3W RGB dyeing + red Starry Sky 150mw + green starry sky 50mw, + white LED 15W + 150mw red green laser pattern
Luminous color: RGBW+red、green+white
Power connection: power cord
Signal connection: signal input line/output line
Function: Auto, voice control effect, etc
Control channel: 14 DMX-512 signal channel
Control mode: DMX-512 signal control, voice control, auto and master-slave mode
Cooling system: Silent fan forced cooling system
Working environment: Indoor
Packaging method: Air box or cardboard box

Power supply: AC90~240V, 50Hz/60Hz
Power: 10W
Laser wavelength: red laser 638nm 100mw, green laser 532nm 40mw, 9W LED RGB pattern
Chassis material: iron
Scanning system: multiple laser effect patterns
Applicable places: bar, disco bar, dance hall, KTV private room, family Party
Power connection: power cord
Control mode: sound control, auto mode
Cooling system: Fan forced cooling system
Working environment: indoor

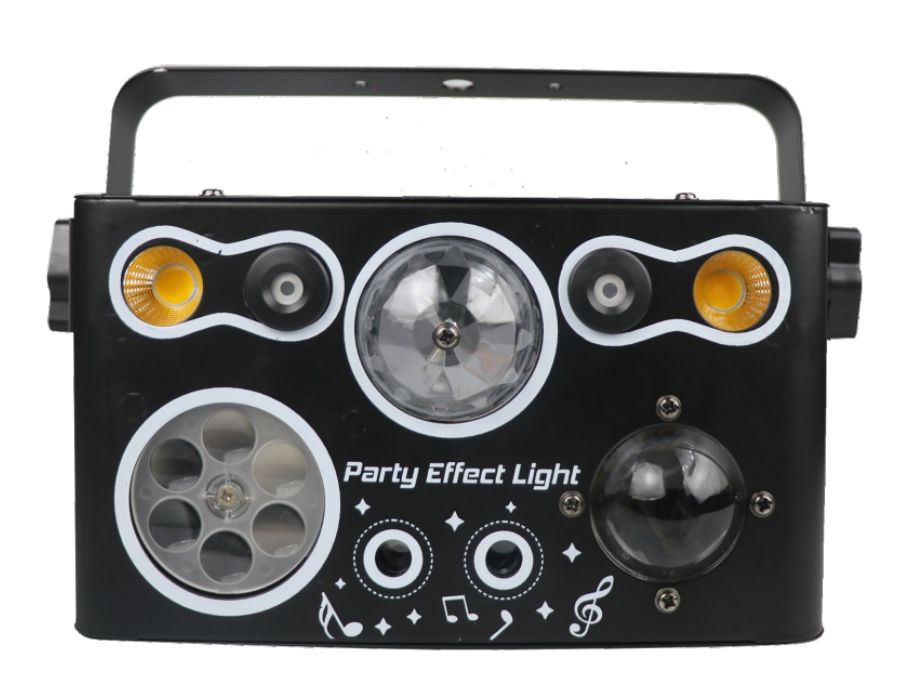

Power supply: AC100-240V, 50Hz/60Hz
Rated power: 45W
Chassis material: plastic
Light source: 5W RGB magic ball + 5W RGB pattern + 10W yellow light*2 strobes + 100mw green laser rain + red green grating G50mw + R150mw, 5W blue water pattern
Power connection: power cord
Signal connection: signal input line/output line
Function: Self walking effect, strobe performance effect
Control channel: 11 DMX-512 signal channel
Control mode: international standard signal RDM, DMX512 signal control, voice control, Auto and master-slave mode
Cooling system: Silent fan forced cooling system
Working environment: indoor
Packaging method: Air box or cardboard box

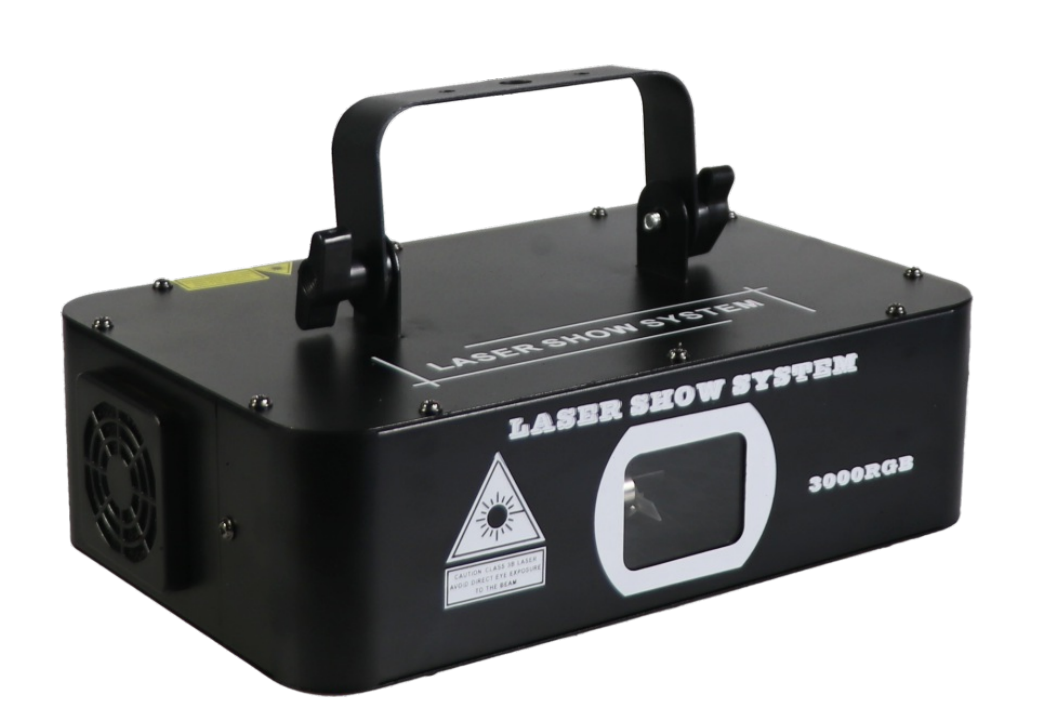

Power supply: AC100~240V, 50Hz/60Hz
Rated power: 30-120W
Laser power: 300mw-10000mw RGB
Scanning system: galvanometer scanning system 15kpps/±25°
Power connection: power cord
Signal connection: signal input line/output line
Control channel: 12/22 DMX-512 signal channels
Control mode: DMX-512 signal control, voice control, self-propelled and master-slave mode
Cooling system: fan forced cooling system
Working environment: indoor

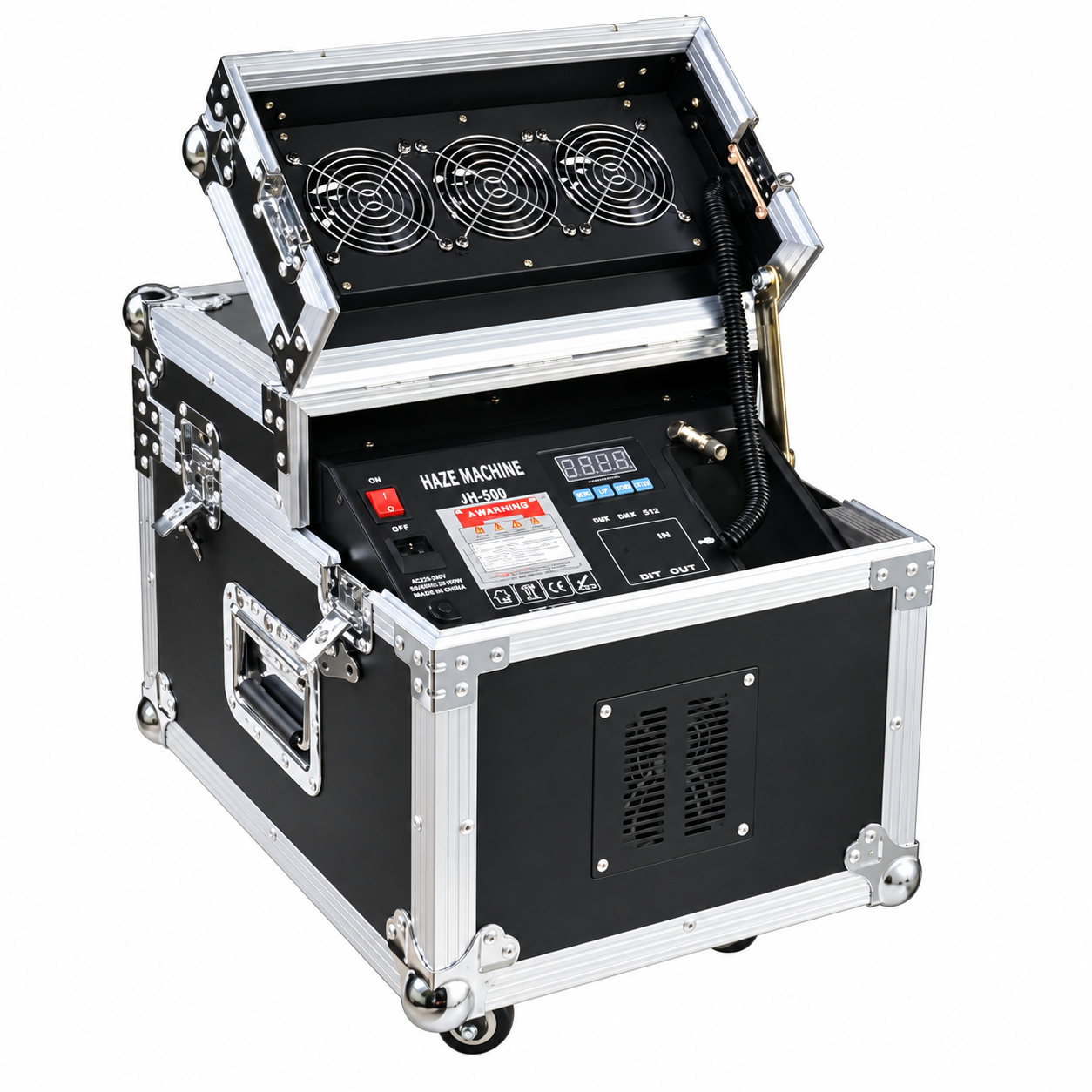

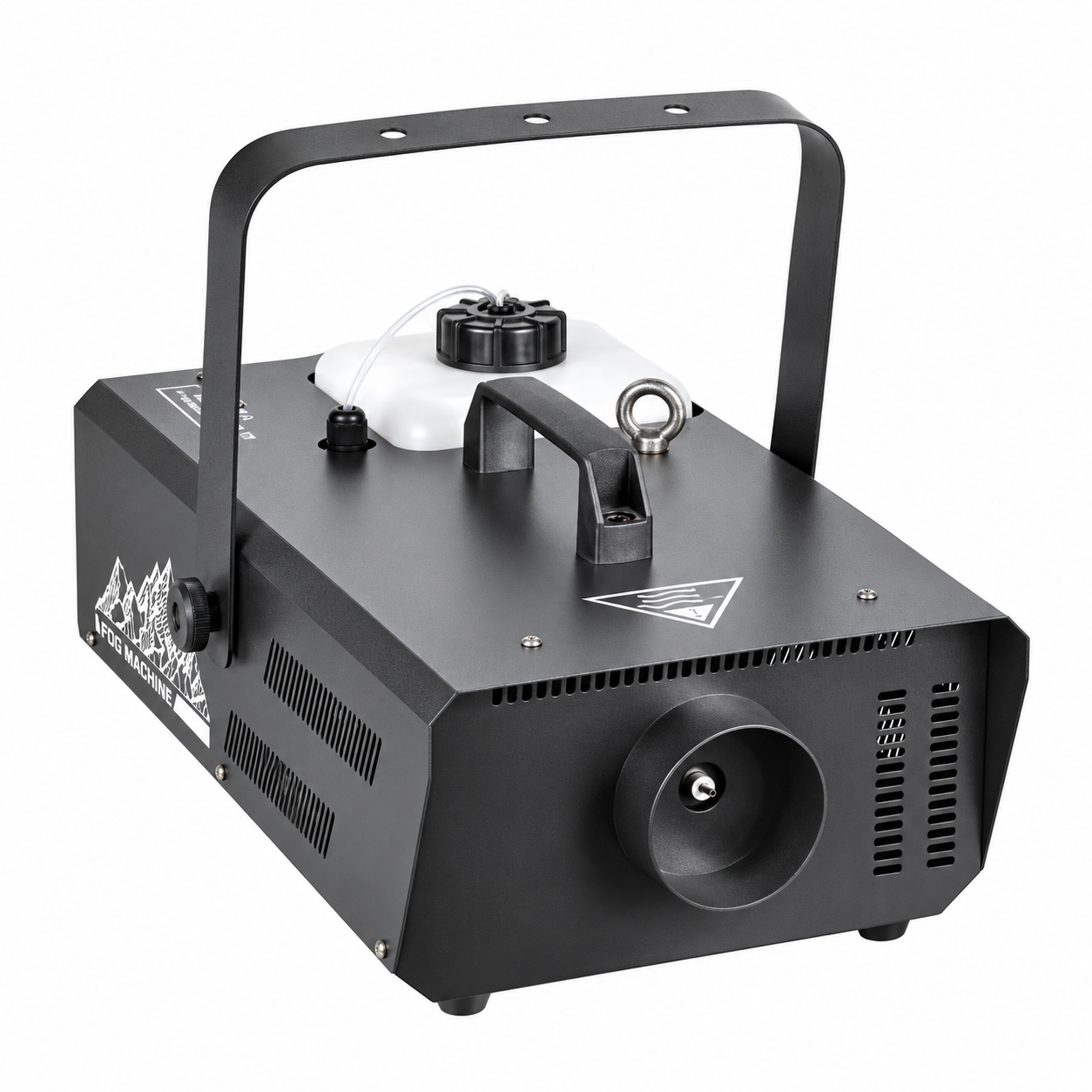

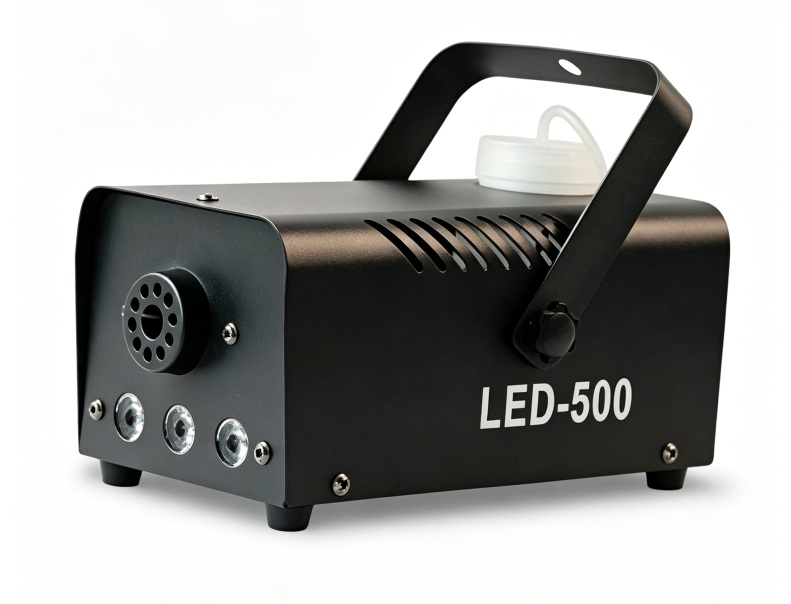

Power supply: AC100-240V, 50/60Hz
Rated power: 500W
Warm-up time: 8 minutes
Fluid tank capacity: 0.25L / 2L
Smoke output: 18000 CU.FF/min
Control mode: Manual / Wired remote control
Working environment: Indoor
Packaging: Carton

Voltage: AC220V-240V 50/60HZ
Insurance: 10A-250V
Power: 1500W
Preheating time: 4min
Smoke output: 30000cuft/min
Fuel consumption: 2.5min/L
Maximum spraying distance: 6m
Wireless remote control: Support
DMX512: Support
Oil barrel volume: 3L
Net weight: 7kg
DMX channel: 1channel
Consumables: B-1\B-3\B-5
Product size: 420/253/303mm
Carton size: 475/325/266mm

Power: 660W
Voltage: AC110V-240V/50-60HZ
Limiting insurance: 250V/5A
Preheat time: no need to preheat, start working anytime.
The amount of smoke output: 3000Cuft/min or 5000Cuft/min
Oil barrels capacity: 3.2L
Supports fan angle adjustment: Yes
Supports airflow volume adjustment: Yes
DMX1 Mode: 1-channel control machine on/off
DMX2 Mode: 2-channel control airflow volume adjustment
Supports LCD control panel
LCD Control LCD controller supports
Gross Weight: 28kg
Packaging: 51.5*39.5*42.5 cm

Voltage: AC110V-220V, 50/60Hz
Power: 600W
Spray height: 1-5M
Preheating time: 3-5 minutes
Control: DMX512/wireless control
Consumables: Titanium Powder
Color: Black
Working temperature: 10℃-50℃
Product size: 193*181*246mm
Net weight: 5.2kg

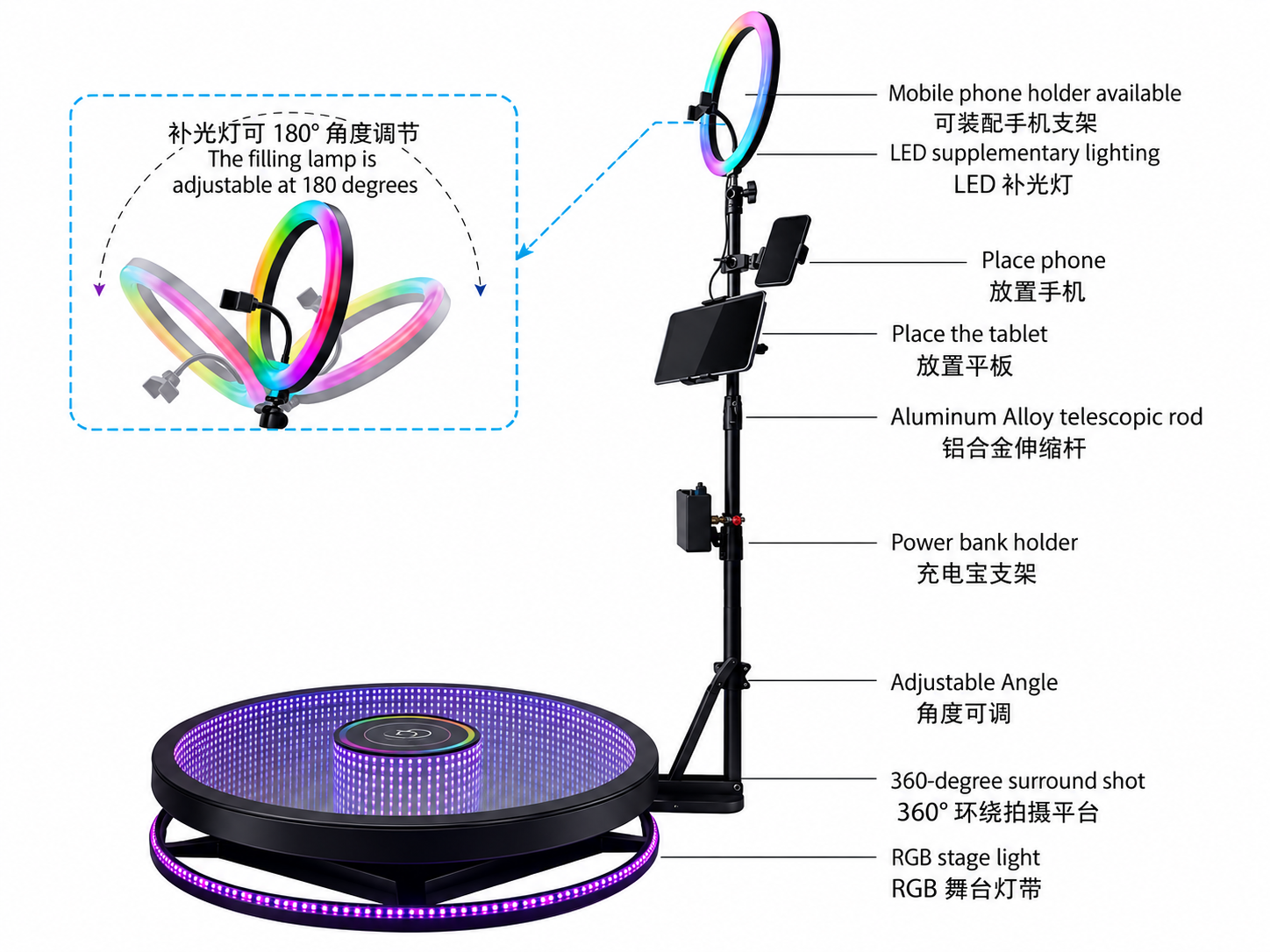

Attention：
1. For the sake of transportation safety, the original package does not contain a power bank to power the ring light. If you need it, you can buy it yourself or send us a separate message for inquiry after receiving the machine.
2. Please check the relevant accessories carefully after receiving the 360 photo booth machine, if there are any missing, please notify us ASAP.
3. Before using, please check whether the power cord, base LED Strip cord, and other items are stuck on the rotating table or not, to prevent the cables from being damaged.
4. For the user's safety, don't jump hard on the Stage.
5. Don't make the edge of the Stage bear too much weight, better distribute the weight evenly on the stage.
6. The Stage should be adjusted parallel to the ground by rotating the foot cup before use.
7. Do not stop the rotating rod deliberately when it was running.
8. Children should not use it alone but must be accompanied by an adult.
9. Please take off the foot cups when putting the photo booth into the flight case for transportation.

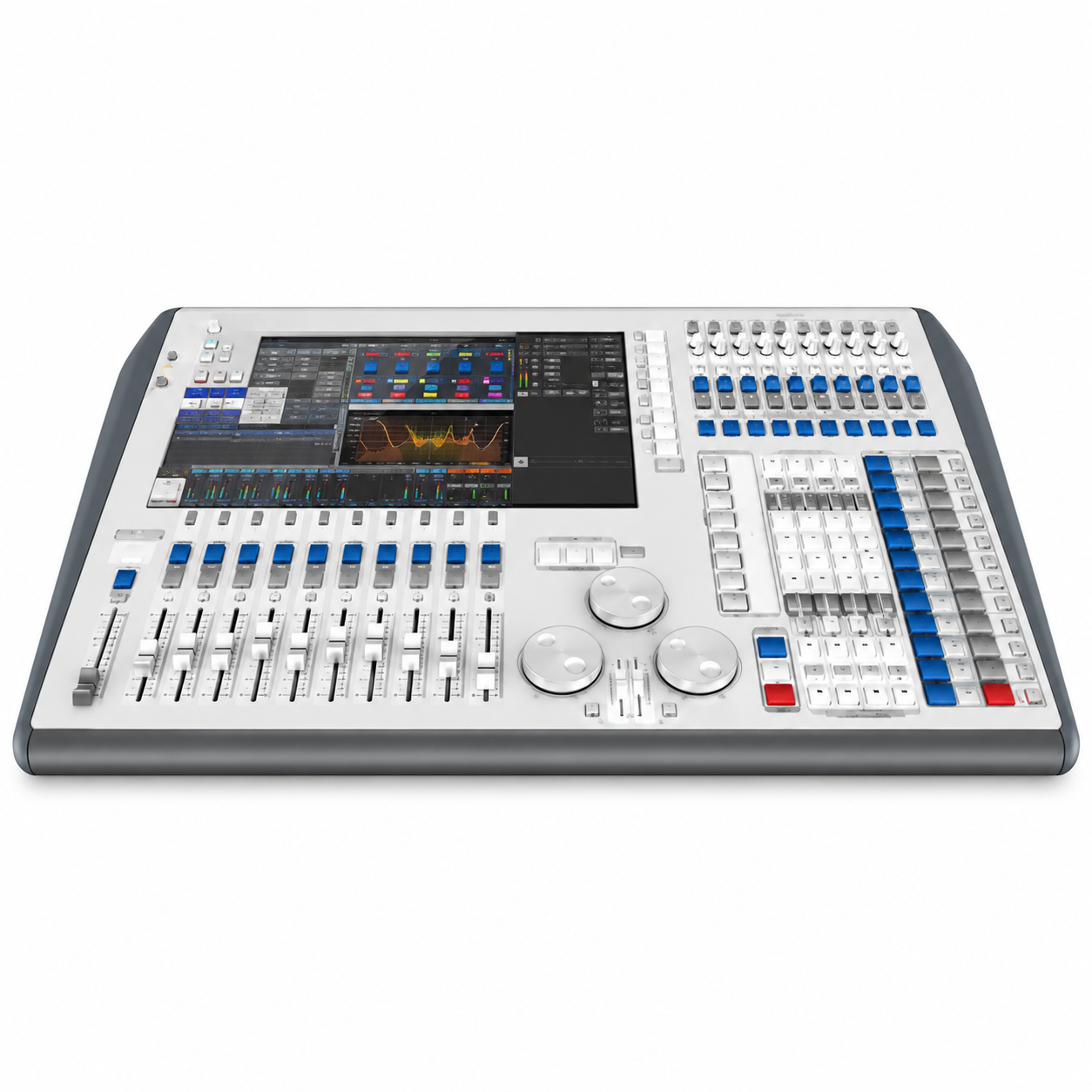

Using a powerful v11 system
I5-CPU, Intel 64G SSD, 4G (DDR3) laptop memory.
Uninterruptible Power Supply System (UPS)
Supports Chinese menu display with built-in multiple languages. Built-in 15.6-inch touch screen.
12 DMA output ports and 6144 DMA channels.
10 macro buttons that can edit any program.
Play 20 times and support 1000 virtual replays.
Powerful CMY color palette.
Support handwriting naming function for graffiti types
Supports CITP protocol and can preview servers with built-in materials or digital modulation.
Built-in library with thousands of lights and built-in light library editing software.
Built-in over 1000 light libraries and built-in light library editing software
Provide MIDI time code control.
Can be used for remote control.
Built-in pixel mapping generator and built-in graphics.
Tiger Touch Generation, Pearl Expert (Titan System) Performance Files Fully Compatible

The default output is 4-512, the network can output 12-512
Intel Core I5 processor, 120G solid state hard disk, 4GB running memory, 90 minutes ups power.
Built-in 4 DMX output ports, 2048 channels;
Support Art-net network output, which can be expanded to 12 Universe DMX outputs through the network;
Support Titan-net protocol, expandable to 64 Universe DMX outputs
10 mechanical page-turning playback faders;
20 custom macro function keys
Built-in 14.1-inch highlight touch screen, which can be extended by a Titan Fader wing
20 playback faders, 30 custom macro functions, USB powered
Support headphone output
1 Gigabit network interface, support Art-net, Titan-net, Streaming CAN protocols
Compatible with other TITAN system console performance files

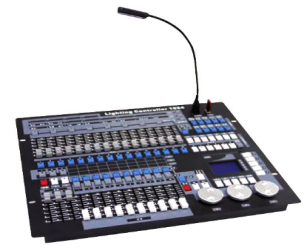

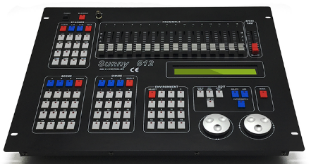

DMX512/1990,
Up to 1024 DMX channels, output with optical isolated.
Up to 96 intelligent Fixtures or 96 Dimmers can be controlled.
Shape generator inside.
Shape generator can create effects such as circles, spire, rainbow, etc
60 playbacks can be store as chase or scene.
Up to 600 steps can be store in chase.
LCD display with backlight.
12V accessory operate light (OPTIONAL)

Can control 32-units 16-channel moving lights, LED display with backlight.
8-channel faders, can be matched with page key to control 16 channels, and 1 speed key.
1400 chase-step storage capacity.
36 chase programs, maximum 99 steps per program.
Each-step speed and gradient parameters can be set independently. Cooperated with chase-speed fader, program-step time ranges from 0.1s to 60s.
32 directly-recallable moving-light scenes.
Can run 4 lighting programs and 32 scenes simultaneously.
X/Y-axes of different moving lights are controlled synchronously via data-wheel.
16-bit X/Y-axis control precision for moving lights.
Power-off data retention.
Specific introduction: The DMX512 moving-light console is specially designed for controlling various moving-lights.
Adopts dual-CPU collaborative processing and high-speed processor chips for precise mathematical operations.
It can control up to 32-units 16-channel moving-lights, with 16-bit high-precision X/Y-axis control, and supports simultaneous playback.

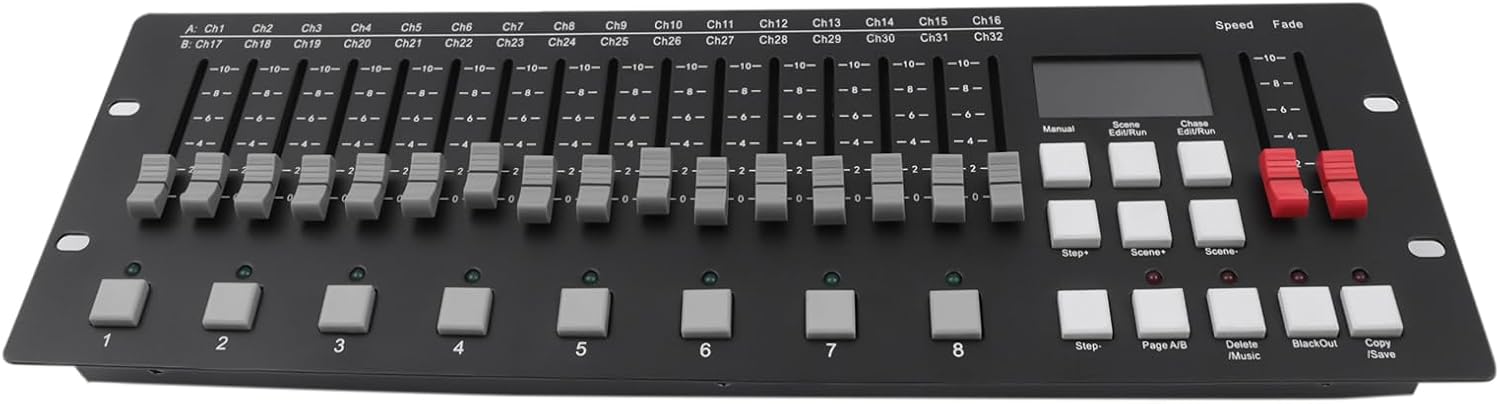

Product name: 256 Console
Working Voltage: AC100V-220V
DMX Channels: 256 (8*16*2)
Power Consumption: 12W
Dimension: 48*17*6 cm
Chase Program: 99 steps
Application: stage, bar, KTV, performance venues

Total number of channels: 240
Number of controllable computer lights: 12
The maximum number of channels for the controllable computer light: 16 channels
Maximum number of steps for the program (scenario): 40 steps
Total number of steps (scenarios) of the program: 480 steps
Scene pause time: 0.1-25.5 seconds per step
Scene gradient speed: 0.1-25.5 seconds
Dimming channels: 24 channels
Display: LCD liquid crystal display 16*2 character DMX512 output interface: 3 XLR pins Socket panel
Storage capacity: 128K large-capacity memory
Input voltage: AC220V-240V, 50/60Hz

192 DMX CHANNEL, There are 30 BANKS.
Each BANK has 8 programmable SCENES
There are 8 adjustable potentiometers to adjust the output level
Built-in MIC head, providing sound triggering
In the automatic trigger state, use the TAP SYNC key Or the SPEED potentiometer determines the automatic trigger time.
It has a MIDI interface and can be controlled at any time with MIDI signals.
4-digit digital tube display.
The first digital tube shows "CHASES".
The second digital tube shows SCENES.
The third and fourth digit tubes display "BANKS".
The second, third and four-digit digital tubes display the number of steps or 0-255 or TIME.
The BLACKOUT function can be remotely controlled either manually or by MIDI.
CHASES programming and CHASES operation functions It can be controlled manually or by MIDI remote control.
Output delay function. Adjust the delay TIME with the FADE TIME potentiometer.
DMX output polarity selection.

With powerful computing power. converts network signals to DMX signals.8 DMX outputs.1 7 TFT touch screen.1 Gigabit Ethernet interface.2 USB ports. Multiple MA consoles can share one or more NPUs for hot backup. Multiple NPUs can be daisy-chained to support protocols such as DMX512, ART-NET, ACN, etc., and RDM support.

Contact us for technical specifications.

Voltage: AC100-240V,50/60Hz
Rated power: 550W
Light source type: 380W Platinum Cup Bubble
Cooling system: built-in convective heat transfer/air cooling
Zoom: Independent Electronic Linear Zoom
Dimming:0-100%
Stroboscopic effect: 0-12 frames/second,
with adjustable prism effects including 8/16 prism and honeycomb prism.
Control modes: DMX512, Master-Slave, Auto, Sync, with large LCD display
channel:16/18CH
13 metal patterns (customizable high-temperature resistant glass patterns)
Aperture long-distance dream effect, linear rainbow effect
Horizontal/Vertical: 540° horizontal, 270° vertical, adjustable speed
Color wheel: 14 colors + white light, flowing pattern effect, bidirectional pattern rotation
Protection grade: IP65
